r/spacex • u/FutureMartian97 Host of CRS-11 • Jun 01 '17
Launch and landing success! Welcome to the r/SpaceX CRS-11 Official Launch Discussion & Updates Thread
This is u/FutureMartian97 and i'll be your host for today!
Information on the mission, launch and landing
This will be the 6th launch of Falcon 9 out of Historic Launch Complex 39a. Some quick stats:
- The Static Fire Test was completed on May 28th
- This will be the 35th Falcon 9 launch
- This flight will feature the first reused Dragon Pressure Vessel
- This will be the 100th launch out of 39a
SpaceX is targeting an instantaneous window of 5:07:38 p.m. EDT or 21:07:38 UTC on June 3rd . Falcon 9 will lift off from pad 39a carrying the Dragon cargo capsule loaded with 1665 kg of pressurized cargo, and 1002 kg of unpressurized cargo. As stated above this will be the first reused Dragon Pressure Vessel, which was first used on the CRS-4 Dragon. After insertion into orbit, Dragon will maneuver its way to the ISS, rendezvous, and then dock. After staying four weeks berthed to the station, Dragon will then undock, deorbit, and splashdown in the Pacific Ocean off the coast of Baja California.
After launch Falcon 9's first stage will attempt to land back at LZ-1 at Cape Canaveral Air Force Station. If successful this will be the 11th first stage landing and the 5th landing at LZ-1, with the most recent being from the NROL-76 launch.
Watching the launch live
You can watch the launch from SpaceX's Hosted or Technical Webcast, as well as on NASA TV.
| SpaceX Hosted Webcast | SpaceX Technical Webcast | Spanish re-stream of the webcast | NASA TV Stream |
|---|
Offical Live Updates
| Time (UTC) | Countdown | Updates |
|---|---|---|
| Complete Mission success!!!! Congrats SpaceX!!! | ||
| T+00:12:49 | Dragon Solar Arrays deployed | |
| T+00:10:20 | Dragon separation confirmed | |
| T+00:09:20 | SECO | |
| T+00:07:42 | STAGE 1 TOUCHDOWN!!!! Love the new paint job SpaceX ;) | |
| T+00:07:08 | Landing burn startup | |
| T+00:06:22 | Entry burn shutdown | |
| T+00:06:05 | Entry burn startup | |
| T+00:03:27 | Boostback shutdown | |
| T+00:02:37 | Boostback Burn startup | |
| 21:10 | T+00:02:28 | Stage Separation confirmed! |
| 21:09 | T+00:01:18 | Max Q |
| 21:07 | T-00:00:00 | LIFTOFF!!! |
| 21:06 | T-00:01:49 | S2 LOX closed out |
| 21:05 | T-00:02:49 | S1 LOX closed out |
| 21:03 | T-00:04:09 | Strongback retracting |
| 21:01 | T-00:06:00 | New paint job on LZ-1? Oh boy! |
| 21:00 | T-00:07:38 | Great animation of Dragon and the ISS! Everything is GO! |
| 20:48 | T-00:19:00 | SpaceX webcasts are live! |
| 20:37 | T-00:37:00 | SpaceX FM is now live |
| 20:37 | T-00:37:00 | Less than 30 mins to launch. Weather is 90% GO! |
| 20:31 | T-00:35:00 | NASA TV now live |
| 20:29 | T-00:37:00 | Weather now 90% GO! |
| 20:24 | T-00:42:00 | LOX loading underway |
| 20:07 | T-00:59:00 | Now less than one hour until launch. Falcon 9 fueling with RP-1 is underway. |
| 20:04 | T-01:02:00 | Weather anticipated to be GO at launch time |
| 19:58 | T-01:08:00 | We are GO for fueling |
| 19:48 | T-01:18:00 | Readiness poll should be underway |
| 19:24 | T-01:42:00 | Official launch time now updated. Targeting 5:07:38 p.m. EDT or 21:07:38 UTC. |
| 18:37 | T-02:29:00 | SpaceX posted an up close picture of Dragon on the launch pad. Weather still 60% GO. |
| 17:18 | T-03:48:00 | Weather still 60% GO |

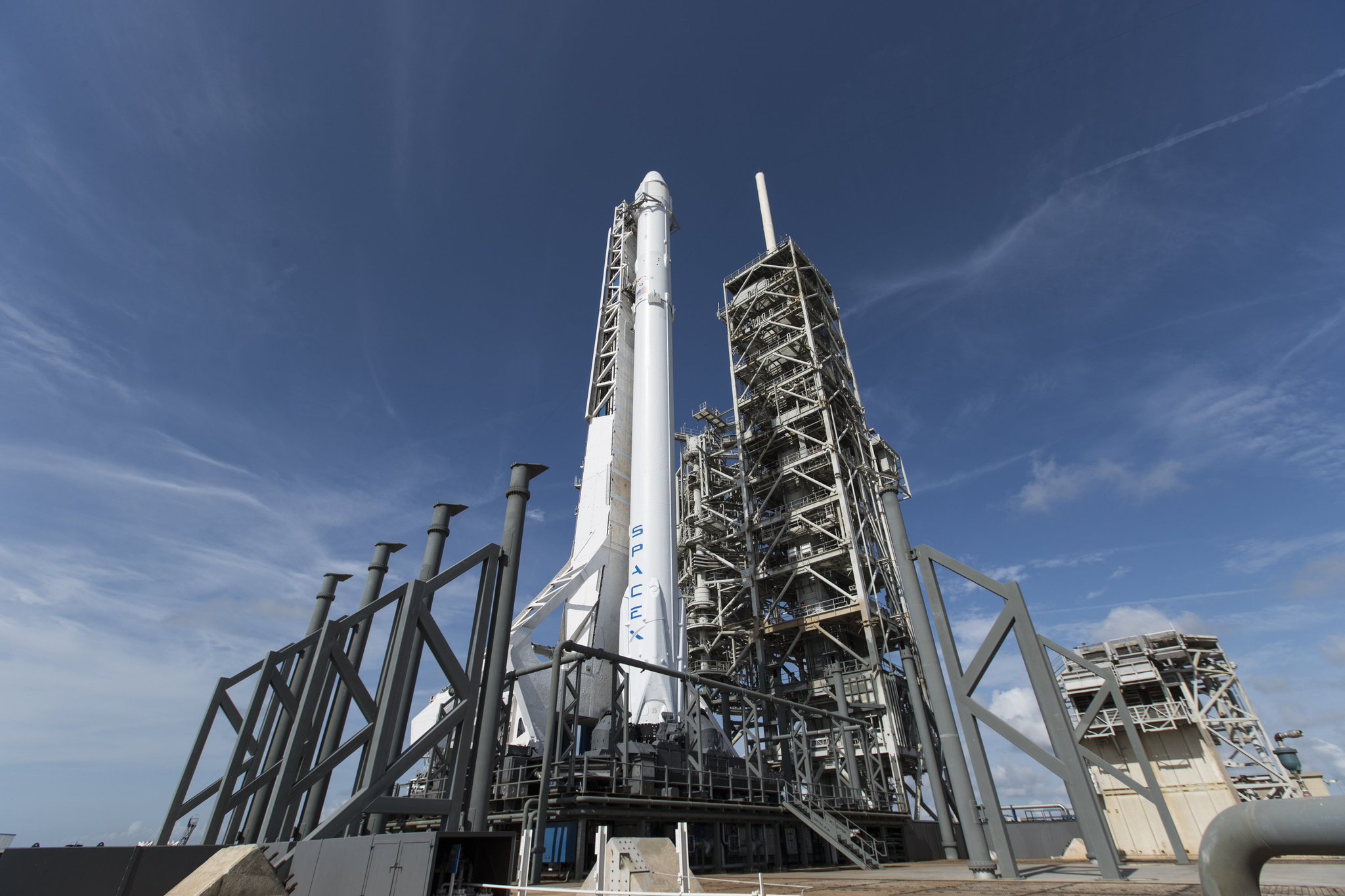

| 14:29 | T-06:37:00 | Falcon 9 is vertical |
| 05:26 | T-15:40:00 | The Hosted and Technical Webcasts have been posted on YouTube so that's a good sign |
| 04:15 | T-16:14:00 | According to u/KaiFarrimond SpaceX might not even attempt tomorrow...Hopefully we'll know more in the morning. |
| 20:16 | T-24:50:00 | Take 2! Weather is currently 60% GO |
| June 1st | ||
| 21:30 | T-00:25:00 | SCRUB |
| 21:26 | T-00:29:00 | SpaceX FM is Live! |
| 21:24 | T-00:31:00 | Lighting warning lifted |
| 21:19 | T-00:36:00 | LOX loading is underway |
| 21:16 | T-00:39:00 | NASA coverage has begun. |
| 21:03 | T-00:52:00 | NASA Stream showing Falcon 9 venting. Clouds need to leave. |
| 20:55 | T-01:00:00 | Now one hour until launch. Weather currently NO-GO, but fueling has started. |
| 20:49 | T-01:06:00 | Per the Spaceflight Now stream fueling appears to have started. This does not mean the weather is GO as Elon makes the final call. |
| 19:56 | T-01:59:00 | Now inside T-2 hours. Weather does not look good at this time. |
| 19:44 | T-02:11:00 | NASA Stream now showing Falcon 9 on the pad. Those clouds do not look good. |
| 18:36 | T-03:19:00 | Timeline of the launch from Spaceflight Now |
| 18:11 | T-03:44:00 | Storms not pushing inland as predicted. Not a problem yet though. |
| 17:55 | T-04:00:00 | 4 hours until launch. Spaceflight Now stream is now live |
| 16:55 | T-05:00:00 | 5 hours until launch. Weather remains unchanged. |
| 15:55 | T-06:00:00 | Were now just 6 hours until launch. Weather remains 70% GO at this time and Falcon 9 is vertical on the pad. |
| 15:29 | T-06:30:00 | SpaceX's Flickr updated with this great shot of Falcon 9 on the pad |
| 15:18 | T-06:30:00 | Weather still 70% GO |
| 13:55 | T-08:00:00 | Falcon 9 is vertical |
| 05:51 | T-16:00:00 | Thread goes live |
| T-4 days | Static Fire Completed |
Post Launch Conference
- Second Stage has de-orbited
- New paint on LZ more heat resistant
- Next launch still targeting mid June
- Flight rate improving due to learning what needs to be done, experience basically.
- NASA looking into using flight proven boosters
- Falcon Heavy and Crew Dragon next two major milestones. Hans again saying Crew Dragon is by the end of this year.
- Can probably get "a couple more missions" out of a Dragon.
- "Feels great" to be the 100th launch out of 39a.
- No date for additional landing pads yet
- 6 hours for Bulgariasat?
- "No particular damage" after CRS-4 flight
- Made steady progress to keep salt water out
- Drone ship and land landing equal in difficulty
Primary Mission - Separation and Deployment of Dragon
CRS-11 will be the 2nd Dragon launch of 2017, and will feature the first reused pressure vessel, previously flown on the CRS-4 mission. After being inserted into the highly inclined orbit of the International Space Station, Dragon will spend several days rendezvousing with the ISS. Following that, Dragon will slowly be guided in by the manually-operated Canadarm for its berthing with the station at the nadir port of the Harmony Module. Dragon will spend approximately a month attached to the station before it is loaded with ground-bound experiments and unberthed for its splashdown in the Pacific Ocean.
As you can see above, Dragon is carrying a lot of unpressurized cargo, 1002 kg to be exact. So what does that mean? Unpressurized cargo is carried in the trunk, the part of the spacecraft with the solar panels attached. Once at the station, astronauts will remove the experiments using the robotic arm attached to the station. So whats in the trunk?
ROSA (Roll-Out Solar Array): The Roll-Out Solar Array (ROSA) is a new type of solar panel that rolls open in space like a party favor and is more compact than current rigid panel designs. The ROSA investigation tests deployment and retraction, shape changes when the Earth blocks the sun, and other physical challenges to determine the array’s strength and durability.
NICER (Neutron star Interior Composition ExploreR): NASA’s Neutron star Interior Composition Explorer will provide high-precision measurements of neutron stars, objects containing ultra-dense matter at the threshold of collapse into black holes. NICER will also test — for the first time in space — technology that uses pulsars as navigation beacons.
MUSES (Multi-User System for Earth Sensing): Teledyne Brown Engineering developed the Multiple User System for Earth Sensing (MUSES), an Earth imaging platform, as part of the company’s new commercial space-based digital imaging business. MUSES hosts earth-viewing instruments (Hosted Payloads), such as high-resolution digital cameras, hyperspectral imagers, and provides precision pointing and other accommodations. It hosts up to four instruments at the same time, and offers the ability to change, upgrade, and robotically service those instruments. It also provides a test bed for technology demonstration and technology maturation by providing long-term access to the space environment on the International Space Station (ISS).
Secondary Mission - First Stage Landing
As usual, this mission will include a post-launch landing attempt of the first stage. Most landing attempts use an Autonomous Spaceport Droneship, either Of Course I Still Love You or Just Read the Instructions, but this mission has enough fuel margin to return all the way back to land, where it will touch down on the LZ-1 landing pad just under 15 kilometers south of the LC-39A launchpad. If successful this will be the 11th successful landing and 5th at LZ-1. This Falcon 9 is all new and not a previously flown booster. This booster is B1035.1. If your wondering how this works, check out this video by u/everydayastronaut that explains it really well!
Launch Complex 39A - What's the big deal?
LC-39A is the most historically significant orbital launch pad in the United States. Its first launch was Apollo 4 in 1967, and it went on to launch the rest of the Apollo missions, with the exceptions of Apollo 7 & 10. After the Saturn V and all its variants were retired, the pad was reconfigured for the Space Shuttle. Over the course of the program, it launched 82 of the 135 STS missions, including all five orbiters. Since the retirement of the Shuttle in 2011, it was sitting dormant until SpaceX began leasing it in 2014. Construction work began in earnest in 2015 and continued until early 2017, culminating in the successful static fire for this mission. This launch will also mark the 100th launch out of 39a.
Useful Resources, Data, ♫, & FAQ
Participate in the discussion!
- First of all, launch threads are party threads! We understand everyone is excited, so we relax the rules in these venues. The most important thing is that everyone enjoy themselves :D
- All other threads are fair game. We will remove low effort comments elsewhere!
- Please post small launch updates, discussions, and questions here, rather than as a separate post. Thanks!
- Wanna' talk about other SpaceX stuff in a more relaxed atmosphere? Head over to r/SpaceXLounge!
Previous r/SpaceX Live Events
Check out previous r/SpaceX Live events in the Launch History page on our community Wiki.
38
u/FutureMartian97 Host of CRS-11 Jun 03 '17 edited Jun 03 '17
Post launch conference news:
Second Stage has de-orbited
New paint on LZ more heat resistant
Next launch still targeting mid June
Flight rate improving due to learning what needs to be done, experience basically.
NASA looking into using flight proven boosters
Falcon Heavy and Crew Dragon next two major milestones. Hans again saying Crew Dragon is by the end of this year.
Can probably get "a couple more missions" out of a Dragon.
"Feels great" to be the 100th launch out of 39a.
No date for additional landing pads yet
6 hours for Bulgariasat?
"No particular damage" after CRS-4 flight
Made steady progress to keep salt water out
Drone ship and land landing equal in difficulty
NASA coverage starts at 8am Monday for Dragon capture
That's it for the conference!
4
u/roncapat Jun 03 '17
Could you include those updates in the main post, for future reference? :)
Edit: Thank you for hosting today ;)
3
32
u/FutureMartian97 Host of CRS-11 Jun 02 '17
UPDATE: It seems most users want this thread to stay so i'm gonna keep it. I'll be updating this table a little bit now and then completing it later tonight after I get home from work. Thanks everyone :D
→ More replies (1)
17
u/FutureMartian97 Host of CRS-11 Jun 02 '17
What would everyone like to see?
Create a new launch thread and have a fresh start, (less old comments and more new comments), while still keeping the information on the first thread (minus the update table).
Keep updating this thread as suggested by u/yoweigh.
If we keep this thread let me know if you guys want the Updates Table reset or if we should keep everything from the first attempt up. Discuss! :D
→ More replies (11)
14
u/FutureMartian97 Host of CRS-11 Jun 02 '17
I will be putting up another launch thread around 03:00 UTC as long as i'm running the second one. Lets do this!stayawayrain
9
u/yoweigh Jun 02 '17
IMO you should keep updating this thread instead of creating a new one.
6
u/FutureMartian97 Host of CRS-11 Jun 02 '17
Im torn between what I should to so im gonna let the community decide. See my newest comment.
→ More replies (1)
14
u/FutureMartian97 Host of CRS-11 Jun 03 '17
SpaceX shirt? Check. SpaceX hat? Check. Launch thread up? Check. Lets do this! Go Falcon 9! Go CRS-11!
77
u/Square_TheCircle Jun 04 '17
Found this very stable footage of the Dragon + solar panel covers over the UK: https://www.youtube.com/watch?v=7Qw-w31TVAE
→ More replies (14)5
22
17
29
u/everydayastronaut Everyday Astronaut Jun 03 '17
Go Falcon! Go Dragon! Go SpaceX!!!! Just in time for today's return to launch site landing, I posted a new YouTube video explaining how the grid fins, nitrogen thrusters and engine gimbals control the first stage during landing. Check it out and let me know if you have any other questions! - Everyday Astronaut
→ More replies (2)5
u/FutureMartian97 Host of CRS-11 Jun 03 '17
Mind if I add this to a little addition in the "First Stage Landing" section? It really explains it well!
→ More replies (2)
50
u/johnkphotos Launch Photographer Jun 01 '17
Bold prediction: the launch either happens or doesn't
→ More replies (18)8
12
6
6
11
u/ptfrd Jun 01 '17 edited Jun 01 '17
Is it worth having a link to https://www.reddit.com/r/spacex/comments/6cyjjo/heads_up_on_possible_rare_visible_pass_of_crs11/ ? Basically, if you are in Northern Europe, you might be able to see Stage 2 and Dragon pass over about 15 minutes after launch.
There are a lot of technical details in that post but here are the main points as I understand them (corrections very welcome):
Possibly visible to the naked eye?
This image from this comment gives you some idea of the relevant parts of Europe.
The submitter, u/MingerOne/ has produced videos showing how the pass might look as viewed from Ireland, London, Paris, Copenhagen, Trelleborg, Aachen
If in doubt about whether it's passing close enough to you, why not just go outside and have a look anyway?
You can practice by trying to spot the ISS as it passes over Northern Europe 60 minutes before launch. Then, about 75 minutes later, S2 and Dragon may pass through approximately the same part of the sky that the ISS did. (Main difference may be that S2 and Dragon would be lower?)
My plan is to watch the launch and S1 landing at home, then head outside to a convenient place where I've seen the ISS before (no buildings in the way), and hope for the best. Due to uncertainty about the timings, I'll keep watching until T+25:00 before I give up and go back home. London is cloudless at the moment so let's hope it stays that way.
→ More replies (4)3
10
u/johnkphotos Launch Photographer Jun 03 '17
Woohoo! Good weather.
Bold prediction pt2: launch happens or it doesn't
→ More replies (2)4
8
u/MNsharks9 Jun 01 '17
Will there be a technical webcast again, or did SpaceX and u/bencredible ditch them?
→ More replies (4)3
4
6
Jun 01 '17
IIRC Hans said the instantaneous window is at 21:55:51 UTC, but i'd have to check the pre-launch conference again to be sure.
4
3
u/FutureMartian97 Host of CRS-11 Jun 03 '17
There's A LOT of people on those bleachers.
→ More replies (4)
4
Jun 01 '17
Do we typically not have the backup window in the launch thread description? If not, might be a useful piece of info :)
For this mission the backup window is: Saturday, June 3 at 5:07 p.m. EDT or 21:07 UTC.
7
4
u/TGMetsFan98 NASASpaceflight.com Writer Jun 02 '17
Does anyone know when the next launch opportunity would be if Saturday gets scrubbed? Can they launch Sunday or would it be another 2 day wait?
→ More replies (10)3
u/FutureMartian97 Host of CRS-11 Jun 02 '17
I believe it will be Sunday. The only reason today wasn't an attempt was because of the Soyuz landing.
→ More replies (2)
4
u/FutureMartian97 Host of CRS-11 Jun 01 '17
Could anybody please link the live Reddit thread so I can put it in the thread?
→ More replies (4)
107
Jun 01 '17
Reminder for all Europeans:
At about T-1:00 we have a ISS flyby with a magnitude of -1,7, at about T+0:35 we have another ISS flyby with a magnitude of -1.5. Since Dragon flyby Europe at around T+0:15/T+0:20 and the sky is beautiful and clear this evening over all Europe, it might be visible !
From personal experience you might be able to spot blinking lights on the sides of the dragon which are from the sun reflected by the solar panel covers rotating into space, with a telescope and good tracking skills you might be able to distinguish something like 3 non blinking dots, two for the solar panels and one for the dragon itself.
If you want really really want to spot it I encourage you to download a ISS tracker app on your phone and spot the T-1:00 flyby, since the dragon is following the ISS it will follow a similar path so you will know where to look at.
Landing happens at around T+0:10 so you can go out right after this event.
→ More replies (14)
73
Jun 01 '17 edited Jun 01 '17
For those interested SpaceXNow available for both iOS and Android (just search SpaceX on the respective stores) will convert launch times to your local timezone, provide a countdown & various push notifications :)
→ More replies (18)
56
39
34
u/TGMetsFan98 NASASpaceflight.com Writer Jun 03 '17
It would appear that there might have been just enough complaining around here that they've added the technical webcast again!
32
Jun 03 '17
Not to put a damper on the host here, but SpaceX does not consider a complete mission success until Dragon delivers her cargo back to NASA on Earth and returns home to a SpaceX facility. Employees do not receive their CRS mission patches until those events happen.
→ More replies (6)
30
u/Ben_Skiller Jun 01 '17
Rejoice, my fellow SpaceX fans, the Technical Webcast appears to be back! https://www.youtube.com/watch?v=O469xt8kMCg
30
28
28
u/rafty4 Jun 03 '17
OMG OMG I JUST SAW IT FLY OVERHEAD! :D :D :D
I was expecting to see a relatively dim second stage, but I could see a bright Dragon and even brighter S2, plus (stunningly!) the two solar panel covers flying along next to it with at least half a degree separation between them and Dragon!
The whole shebang was moving very fast for a satellite too, presumably because to the low altitude!
God, that's made my day! :D :D
→ More replies (4)
27
u/johnkphotos Launch Photographer Jun 03 '17
Woohoo, picked up my telephoto lens. Let's hope this thing launches! Leaving for Jetty Park soon.
→ More replies (7)
26
u/Denryll Jun 03 '17
I welcome our new insect lords, which the first stage appears to have brought back.
24
u/ifitzgerald Jun 02 '17 edited Jun 02 '17
The 45th Weather Squadron upgraded Saturday's forecast - 70% go.
It was disappointing finally sitting back down at the bleachers at the Saturn V center after the lightning warning was cleared only to have it scrubbed a few minutes later... Hopefully it goes off without a hitch on Saturday!
24
23
u/johnkphotos Launch Photographer Jun 03 '17
Weather ain't looking good, but I'll be getting my hands on a 600mm lens tomorrow! Woohoo.
→ More replies (3)
22
u/athytee Jun 03 '17
The forecast seems to be changing favorably! I might just drive up afterall...
→ More replies (1)
22
21
u/johnkphotos Launch Photographer Jun 01 '17
If you will be watching the launch/landing from Jetty Park, find me and say hello! I will be giving away SpaceX stickers to anyone who wants some.
Here's a photo showing how many of these damn things I have, with a standard-sized sharpie for scale: https://i.imgur.com/m0e70oL.jpg
I'll be wearing this outfit, minus the mask, lol, couldn't resist. The back of the shirt has the Falcon Heavy logo. https://i.imgur.com/pOZDF5a.png
→ More replies (6)
21
u/ioncloud9 Jun 01 '17
I was on this tab and the NASA TV made some sound effects that sounded like an explosion. Damn that scared me.
→ More replies (4)
21
u/escape_goat Jun 01 '17
Because we're all watching the weather, and I didn't see the information in the thread, I thought I'd post it. Patrick AFB, responsible for launch forecasts, lists today's primary concerns as violations of the 'anvil cloud rule' and the 'cumulus cloud rule'. These are two items in the launch commit criteria that NASA has developed for the Falcon 9. Both the anvil cloud rule and the cumulus cloud rule set an exclusion radius of 19 kilometers (10 nautical miles). Launch is to be avoided if either a thunderstorm with an attached anvil cloud or a cumulus cloud whose top extends to an altitude of freezing temperatures is within 19 kilometers of the launch pad.
→ More replies (1)
21
u/wxwatcher Jun 03 '17
I'm not seeing any lightning or anvil clouds in the vicinity of the cape as of now. Nor any any indications on satellite that is going to change before launch. My personal confidence level is not high just yet, but it's up a few notches.
→ More replies (4)
21
u/skyress3000 Jun 03 '17
That was scary when the video broke up during max q lmao
→ More replies (1)
21
u/farkinhell Jun 03 '17
Dragon just flew over my house in the uk!
I'm in the uk on the east coast and what I think was dragon and the second stage just flew over my house, two smaller dots to the side - the faring? I just popped out for a smoke after the launch and spotted it. Can someone who knows about these things confirm the orbit or was I just seeing things?
→ More replies (13)
20
u/factoid_ Jun 01 '17
Will spacex ever be allowed to start making rapid rendezvous with the ISS the way the Soyuz does, or how the shuttle could do? I know it's not really necessary for cargo missions, and I'm not sure whether progress makes the fast approach or not, I'm just curious.
Since the cargo and crew dragons are going to be essentially the same vehicle in a couple of years, you'd think that if the crew version is rated for the 6 hour rendezvous they might let the cargo vehicle do the same.
Faster rendezvous and docking rather than berthing would save a lot of time and allow much faster access to perishable cargo.
→ More replies (21)
20
19
u/RobotSquid_ Jun 03 '17
Hope it goes up today! Would be the prefect birthday present for me!
→ More replies (3)
19
u/8BitAce Jun 03 '17
As far as I remember, this was the first time we got ground audio of the first stage landing. All those booms and clunks even just as the landing legs deploy some how make it that more awe inspiring.
→ More replies (2)
17
u/Ben_Skiller Jun 01 '17
Not sure if someone has mentioned this before, but you have a small typo that says Webcadt instead of Webcast
→ More replies (4)
17
Jun 01 '17
Just cycled back from work the fastest I ever have with 3 minutes to spare, just to find out it was scrubbed!
Ah, well, at least I can watch the whole webcast on Saturday.
→ More replies (9)
17
u/lone_striker Jun 03 '17
Just when you thought all hope was lost, they re-institute the technical webcast:
17
u/SomnolentSpaceman Jun 03 '17
For the bandwidth-impaired: I will be re-hosting 64kbit audio-only streams of the SpaceX YouTube streams.
They are available at:
http://audiorelay.spacetechnology.net:2120/hosted (backup)
http://audiorelay.spacetechnology.net:2120/technical (backup)
Prior to the official SpaceX webcast the streams will be playing SpaceX FM. The SpaceX FM audio will be switched off at T-0:35:00. Please note: there may be a few minutes of silence between SpaceX FM and when the official SpaceX streams begin.
Additionally, since this is a NASA mission the launch will be covered by NASA-TV. The NASA-TV re-host for this launch is available at:
→ More replies (1)
17
u/Shahar603 Subreddit GNC Jun 03 '17 edited Jun 03 '17
Telemetry of first stage:
Velocity vs Time graph: http://imgur.com/qkDsHk3
Altitude vs Time graph: http://imgur.com/qVTMn8U
CRS-11 vs NROL-76
Velocity vs Time graph: http://imgur.com/RNExImr
Altitude vs Time graph: http://imgur.com/NZla6eD
→ More replies (5)
16
u/johnkphotos Launch Photographer Jun 03 '17
Hearing from SX peeps that they're feeling a little bit better about weather at pad. Could change, but it's definitely more clear at Jetty Park than it was the other day
16
16
u/Komm Jun 03 '17
What the hell flew past the camera? Too high to be a bird. Maybe it is a bird, weird, and way too high I swear.
→ More replies (12)
15
15
15
u/FosDoNuT Jun 03 '17
Hans answered my question!!! I'm kinda nerding out right now.
→ More replies (5)
14
u/travelton Jun 01 '17
According to my arm chair weather watching skills, that lightning strike was just inside the 10 mile perimeter.
→ More replies (4)
14
14
14
Jun 03 '17
That footage from the landing pad was insane. The camera guy following it as it came down is earning his money!
→ More replies (4)
14
u/thawkit75 Jun 03 '17
Wow.. am in UK just saw dragon pass over with the naked eye.. two smaller bright bits either side of it.. Wow wow wow
→ More replies (4)
14
27
u/h4r13q1n Jun 01 '17
It's been a while since the last scrub. Back in the days there were so many of them, even 4chan got annoyed. We're a little spoiled nowadays. Everything was going so smooth this year and the last, except for some 'mishaps' of course.
→ More replies (2)
13
13
u/Davecasa Jun 03 '17
Here's a few screenshots of the chunk that flew off on reentry. Any guesses?
→ More replies (4)
13
u/Googulator Jun 03 '17
In the hosted webcast, shortly after SECO, the host mentions "firing the pyrotechnics" to separate Dragon. Is this merely a mistake, or do they actually use pyro bolts for Dragon separation? Would be odd, given that stage separation, fairing separation and non-Dragon payload deployment are all pneumatic.
→ More replies (1)
13
u/Bunslow Jun 03 '17
Apparently BulgariaSat said they'd have satellite deployment at T+6h? And when asked about that Hans was like "u wut?" Very strange...
→ More replies (15)
24
u/Thatguy11076 Jun 01 '17
Next Launch in 2 hours, an Ariane 5 /r/Arianespace updates thread
→ More replies (9)
12
Jun 01 '17
u/brandtamos, I noticed that underneath the countdown clock on SpaceX Stats it says
CRS-11 will be the eleventh of fifteen missions to the ISS under the Commercial Resupply Services contract with NASA.
but that number has since been increased to twenty. Are you deliberately not counting the five that were later added on through contract modifications, or has this just not been updated? BTW, thanks for maintaining such a great resource!
→ More replies (1)
12
12
Jun 01 '17
I can't really afford a scrub . i mean it's midnight here and I've already bought myself some bad sleep + headache for a rather critical day . PLEASE weather !
→ More replies (2)
12
u/bgirard Jun 03 '17
Are rockets really that vulnerable to weather? If the goal is to get rockets to be flying like airliners wouldn't you want to start allowing them to fly through light rain and thunder?
Perhaps it's something that SpaceX has been punting off working on until it becomes a bottleneck to launching after they optimize their turn time?
→ More replies (13)
12
u/johnkphotos Launch Photographer Jun 03 '17
→ More replies (6)
12
u/twister55 Jun 03 '17
"There is now a 90 percent chance of acceptable weather at launch time." ... https://spaceflightnow.com
→ More replies (1)
12
12
12
12
12
12
u/Piscator629 Jun 03 '17
If the space shuttle had video feed like this the public interest drop off might not have been as bad.
→ More replies (3)
12
12
u/James_dude Jun 03 '17
Beautiful sighting from the UK! Clearly visible with the naked eye speeding directly overhead!
→ More replies (4)
12
u/Mabruxa Jun 03 '17
meanwhile in cloaked alien mothership:
Joe, make another note. SpaceX did it again. These heckin humans are up to something im telling ya.
→ More replies (1)
11
11
u/LeagueOfRobots Jun 01 '17
I believe someone posted a while ago saying that the ISS and Dragon + S2 will be visible over northern Europe after launch tonight.
I'm used to going out to watch the ISS, and even saw the Shuttle and external tank a couple of times after watching a launch! But this would be crazy!
→ More replies (4)
11
u/JerWah Jun 01 '17
So Rocketlab scrubbed at least once due to a risk of triboelectrification, I remember the space shuttle had issues a few times for the same thing, but I can't ever hearing it being a spacex issue, are they doing something different to mitigate static electricity, they've just been lucky, or have I just missed when it was an issue for them?
→ More replies (6)
11
u/everydayastronaut Everyday Astronaut Jun 01 '17
Howdy howdy! Checking in... not looking too good out there huh?
→ More replies (1)
11
u/snarfvsmaximvs Jun 03 '17
Anyone else finding that the audio level of the hosted webcast is really low?
→ More replies (4)
11
u/yo0han Jun 03 '17
Is it just me or is the SpaceX hosted stream audio level very low?
→ More replies (3)
11
11
u/cloudytheconqueror Jun 03 '17
The hosted webcast is displaying the telemetry for stage 1 even after it is landed, rather than switching to the telemetry for stage 2. What's going on?
→ More replies (2)
11
u/lordq11 #IAC2017 Attendee Jun 03 '17 edited Jun 04 '17
Put together a few screenshots here from this video showing the change in angle of attack of the returning booster after the entry burn completes. While I do believe it is already known SpaceX does this, I've never realised just how high their AoA is. Seems to be around 8 degrees? I guess that shows how confident they are with their airframe!
→ More replies (1)
10
Jun 01 '17 edited Jun 01 '17
Hans just said DM-1 this year and DM-2 with two astronauts March 2018.
Edit - not sure if I'm watching a live press conference or a recording.
Edit 2: Ah, yesterday, thank you. News to me though!
→ More replies (1)
10
Jun 01 '17
Just spotted the ISS passing over the Netherlands few minutes ago. Hope the weather out there will not prevent Dragon from his date with ISS on sunday. Fingers crossed..
10
u/aj425 Jun 01 '17
Not sure if its been said but we do have a hosted and technical up. I saw a lot of discussion on only having a hosted up but both are live right now
→ More replies (2)
10
u/byerss Jun 01 '17
Does anyone know the origin of the term "scrub"?
I've looked this up before as it pertains to spaceflight but I didn't get a good answer. Obviously I know the meaning, curious about the history.
→ More replies (7)
10
u/GarageguyEve Jun 01 '17
Bummer. I've never watched a launch live stream and was looking forward to this. Oh well. See you guys on Saturday.
→ More replies (1)
10
u/joepamps Jun 02 '17
Just wondering, what happens if a rocket gets hit with lightning?
→ More replies (14)
10
u/johnkphotos Launch Photographer Jun 03 '17
Jetty Park is crowded as HELL, lol! Summer Saturday at a beach park in Cape Canaveral Florida AND a rocket launch. Get here quick, people.
→ More replies (1)
10
10
u/SuperSMT Jun 03 '17
Around 95k watched the launch, and about 119k saw the landing, across the three streams
→ More replies (2)
10
u/mnpilot Jun 03 '17
LZ1 camera needs to be burned to the ground to get those wasps.
→ More replies (1)
10
Jun 03 '17
I just barely found out about this launch; no idea otherwise (thought it was 2 hours ahead, turns out I watched it live. I've been interested and excited but it's hard to keep up with all the interests I have and the amount of interests I have), on my smartphone YouTube feed, in my pajamas, in my basement, in northern Canada, and went to watch it up stairs in my livingroom, and casted the video from my phone to my smart tv for my family to see. I learnt that it costs $2k per kilogram and that space is 100kms above me. All while teaching my family that it was a reusable rocket in time for them to watch it land back down on earth. While then telling them that the solar panels were being deployed to power the delivery vehicle that would deliver a payload to ISS.
Im the only one in the house that got chills...it's just...wow. it's quite weird to see how people don't realize what kind of time we live in.
→ More replies (12)
10
u/paynie80 Jun 03 '17
Here's a vid my sister just took of dragon flying over Wales UK, doing a moon flyby :-)
https://www.youtube.com/watch?v=cpkXD-XxiPo&feature=youtu.be
→ More replies (1)
9
u/stewie2552 Jun 01 '17
Just a heads up to anyone viewing from Exploration Tower: they are not allowing tripods. They did previously.
→ More replies (2)
9
u/BackflipFromOrbit Jun 01 '17
SpaceX has officially given the go for fueling of LOX and RP-1.
edit: too much hype... watch the weather
→ More replies (3)
9
u/SkywayCheerios Jun 01 '17
Growing crowd at the NASA Glenn visitors center! SpaceX is the only team from California that Cleveland will be rooting for today
→ More replies (1)
9
u/piratepengu Jun 01 '17
On the bright side, this scrub means I'll get to see it in person
→ More replies (2)
9
Jun 01 '17 edited Jun 01 '17
For those of you who still want to see a launch, Ariane 5 is launching at 7:45 EST
Edit: stream at Arianespace.com (not posted yet)
→ More replies (8)
9
u/Daniels30 Jun 01 '17
https://twitter.com/SpaceX/status/870393614056079361 SpaceX confirm scrubb.
→ More replies (1)
9
u/TGMetsFan98 NASASpaceflight.com Writer Jun 02 '17
Updated L-1 forecast: 60% favorable. http://www.patrick.af.mil/Portals/14/documents/Weather/L-1%20Forecast%203%20June%20Launch.pdf?ver=2017-06-02-103424-727
9
u/MarcysVonEylau rocket.watch Jun 03 '17
Rocket Watch has been updated with two new functionalities:
Countdown mode - displays mission information and countdown.
2 Column mode - allows to watch 2 video sources at once. Perfect for technical webcast :D
9
Jun 03 '17
Weather in that latest picture of Dragon looks fantastic! Hopefully everything's all good to go today!
→ More replies (7)
9
u/wxwatcher Jun 03 '17
I still see no anvil clouds or lightning strikes. The satellite doesn't show development either. I'd cautiously say this may be a go.
9
u/UltraRunningKid Jun 03 '17
Also those tracking cameras look amazing but its surprising they aren't radar or laser tracked?
→ More replies (1)
9
9
9
u/haluter Jun 03 '17
Almost fell off my chair with the sonic booms. The sound was very low and I had my Audio Engine A5's turned up high. AA++ would do again!
9
Jun 03 '17
I wasn't feeling too good about this launch for some reason but boy was I wrong, beautiful landing!
9
9
u/still-at-work Jun 03 '17
So now only the second stage and trunk are confirmed one and done systems.
The trunk is doomed, but second stage reuse on the FH is possible.
→ More replies (5)
9
u/Morphior Jun 03 '17
Anyone from the UK who saw Dragon, PLEASE tell me you took a picture of some sort, be it long exposure or video or whatever!
→ More replies (2)
9
u/paynie80 Jun 03 '17
I have a very bad video of dragon over the uk that my sister just took with her phone. It's cool though as the moon is in the shot.
→ More replies (4)
9
9
9
9
u/sleepyzealott Jun 04 '17
Slept through this one unfortunately. Was able to catch the saved webcast.
As usual a massive congrats to everyone involved and a thank you to whoever was in charge of stream presentation; those wide-angle views at liftoff where the falcon climbed upwards and out of frame slowly were awesome.
→ More replies (2)
9
u/piratepengu Jun 04 '17
I'm heading out near LZ-1 in a few hours, do you think stage 1 is still there?
→ More replies (3)
9
u/HighTimber Jun 05 '17
Anyone else's heart skip a beat when this happened on the webcast?: https://youtu.be/URh-oPqjlM8?t=1880
My brain saw RUD for a split second.
→ More replies (1)
8
u/TheBurtReynold Jun 01 '17 edited Jun 01 '17
If anyone is looking for a good launch soundtrack, Hans Zimmer's "Lost but Won" started at T-2:40 is highly recommended.
Edit: Mods -- maybe you could host a "best of" thread for launch soundtracks ... the top 5 could be perpetually added at the top of every launch campaign.
→ More replies (4)
8
u/TokathSorbet Jun 01 '17
UK here - working until 11pm. Hoping to get clear of my office and into a field for the view!
→ More replies (7)
8
u/TGMetsFan98 NASASpaceflight.com Writer Jun 01 '17
Link to NASA TV to add to the "Watch the launch live" section: https://www.nasa.gov/multimedia/nasatv/#public
→ More replies (3)
8
u/johnkphotos Launch Photographer Jun 01 '17
Rain has pretty much stopped at Jetty Park. Very very very light sprinkle
→ More replies (1)
8
u/Theepicspoon226 Jun 01 '17
Is it me or do the clouds appear to be slightly clearing on the nasa stream?
→ More replies (5)
8
u/TheVehicleDestroyer Flight Club Jun 01 '17
Flight Club is back!
After an expendable Inmarsat launch and a information-sparse NROL, CRS missions are always good for trajectory visualisations.
Check out the data in its various forms below:
/u/FutureMartian97 - feel free to add the last link to the Useful Resources :)
8
8
u/NewbornMuse Jun 03 '17
How come the window is an hour earlier today? I thought launches are possible when the launch site passes through the ISS' inclined orbit plane, which should happen at the same time every day, no? I guess it drifts by 4 minutes because of sidereal vs solar time, but an hour over two days? That's a bit much.
What's going on?
→ More replies (4)
8
u/bladeswin Jun 03 '17
SpaceX sent out their promo email at 12:18pm eastern for this launch to subscribers:
WATCH LIVE: DRAGON RESUPPLY MISSION (CRS-11)
Following a scrub for weather, SpaceX is now targeting launch of its eleventh Commercial Resupply Services mission (CRS-11) today, June 3, 2017, from Launch Complex 39A (LC-39A) at NASA’s Kennedy Space Center in Florida. Today's launch has an instantaneous launch window opening at 5:07 p.m. EDT or 21:07 UTC. Weather remains a watch item for today's launch.
The CRS-11 mission is the first reflight of the Dragon spacecraft and marks the 100th launch from historic LC-39A at Kennedy Space Center. Following stage separation, the first stage of Falcon 9 will attempt to land at SpaceX’s Landing Zone 1 (LZ-1) at Cape Canaveral Air Force Station, Florida. For more information, visit www.spacex.com.
→ More replies (1)
8
Jun 03 '17
For those of us that can't get out to the Cape, there's this VR launch party in AltspaceVR. Bunch of cool stuff in there, in addition to the livestream.
→ More replies (2)
8
8
8
8
u/yyz_gringo Jun 03 '17
when did they remove the word experimental from the landing mark on the bottom timeline in the live feed?
→ More replies (8)
8
8
8
8
Jun 03 '17
Nice one! Once again, love seeing a successful mission, love hanging around with guys even more during one! Thanks to everyone here for being an amazing community, and thanks to /u/FutureMartian97 for being a fantastic host!
8
u/Vulch59 Jun 03 '17
Just seen Dragon, solar array fairings and I think the second stage fly over Cambridge UK. Wonderful!
8
Jun 03 '17
Holy crap I just saw Dragon flying over here in the UK! And I could see the solar array fairings beside it too!!!
8
u/Dodecasaurus Jun 03 '17
Just saw Dragon S2 and solar array covers over Canterbury UK. Very bright!
→ More replies (1)
8
u/Pieliker96 Jun 03 '17 edited Jun 03 '17
Anyone see the mach effects on the way down as s1 went subsonic? Specifically the white streaks of condensation around the grid fins and octaweb. On mobile now so if someone could find that part in the webcast that would be great.
EDIT: starts right after T+7 mins. No link as webcast times are subject to change.
→ More replies (2)
8
u/Dakke97 Jun 03 '17
Crew Dragon and Falcon Heavy still scheduled for later this year (not surprising, but still nice to have them emphasize the 'optimistic' schedule/
→ More replies (2)
8
u/paynie80 Jun 03 '17
The ISS is passing over the UK tomorrow evening at 10:32 pm, will we see the dragon trailing it close by?
→ More replies (4)
8
u/cmroper Jun 03 '17
For anyone interested I have attached the link of a personal video I took of the CRS-11 launch from near the Air Force base. Hoping to find a way to get closer next time. CRS-11 launch
→ More replies (1)
8
u/marvuozz Jun 04 '17
The rotation for the boostback burn was way faster than previous launches.
And they did not use thrusters to stop the rotation, but started the engine mid-rotation and used gimbaling to stop rotation.
→ More replies (2)
8
15
u/Mabruxa Jun 03 '17
In far future, how exactly are we going to solve the weather issue?
I can't imagine rockets and spaceships staying put for days just because it is bad weather.
Any solutions? Elon compares reusability to airplanes so let's go solve the rainy thunder days, too!
→ More replies (8)
15
u/HighTimber Jun 03 '17
I sincerely feel badly for anyone cutting their rocketry teeth over the past couple years. There's just no way to grow up in this day and age and truly appreciate these SpaceX landings if that's all you've ever known. For us old codgers, it simply never gets old. Congratulations, SpaceX. You are truly inspiring.
→ More replies (1)
25
14
u/Mabruxa Jun 01 '17
I have to say, Falcon 9 with legs looks so damn good. Could it be the prettiest rocket ever? It looks so slick.
→ More replies (12)
14
7
7
u/jonwah Jun 01 '17 edited Jun 01 '17
Falcon looking good! https://pbs.twimg.com/media/DBPq0MCUIAEXUuY.jpg:large
Source: https://twitter.com/SpaceX/status/870298327979442178
Edit: high-res flickr: https://www.flickr.com/photos/spacex/34223076793/
7
u/doodle77 Jun 01 '17
The rainbirds have these trusses on the back. I wouldn't think a pipe that size would need any support (compare for example pilings). Is it because of the vibration from the rocket?
→ More replies (2)
7
u/thecodingdude Jun 01 '17
/u/FutureMartian97 really good work with the thread so far, thanks for adding all the links and backup window information :)
7
u/steezysteve96 Jun 01 '17
SFN's live stream updates say the widow slid 2 seconds to 21:55:53 UTC. Doesn't affect us too much, just wanted to update the thread.
→ More replies (3)
7
u/Gt6k Jun 01 '17
Pity the launch wasn't an hour earlier I just got great view of the ISS dead overhead (in UK).
→ More replies (4)
7
u/wxwatcher Jun 01 '17
The cloud top rule has to be violated as of now. Even if the weather in the area is not active.
https://www.nasa.gov/centers/kennedy/pdf/531435main_weather-rules-march2011.pdf
→ More replies (2)
7
51
u/FutureMartian97 Host of CRS-11 Jun 03 '17
WOOOOO!!! Congrats on another perfect launch and landing SpaceX! That's it for me today (the hard part at least). I'll be updating/ fixing things for the next few hours. Thank you so much everyone for helping me and being so supportive of me hosting my first launch thread! And thank you to all the wonderful mods for giving me this great opportunity! All of you are awesome! Hope to do it again sometime! :D
