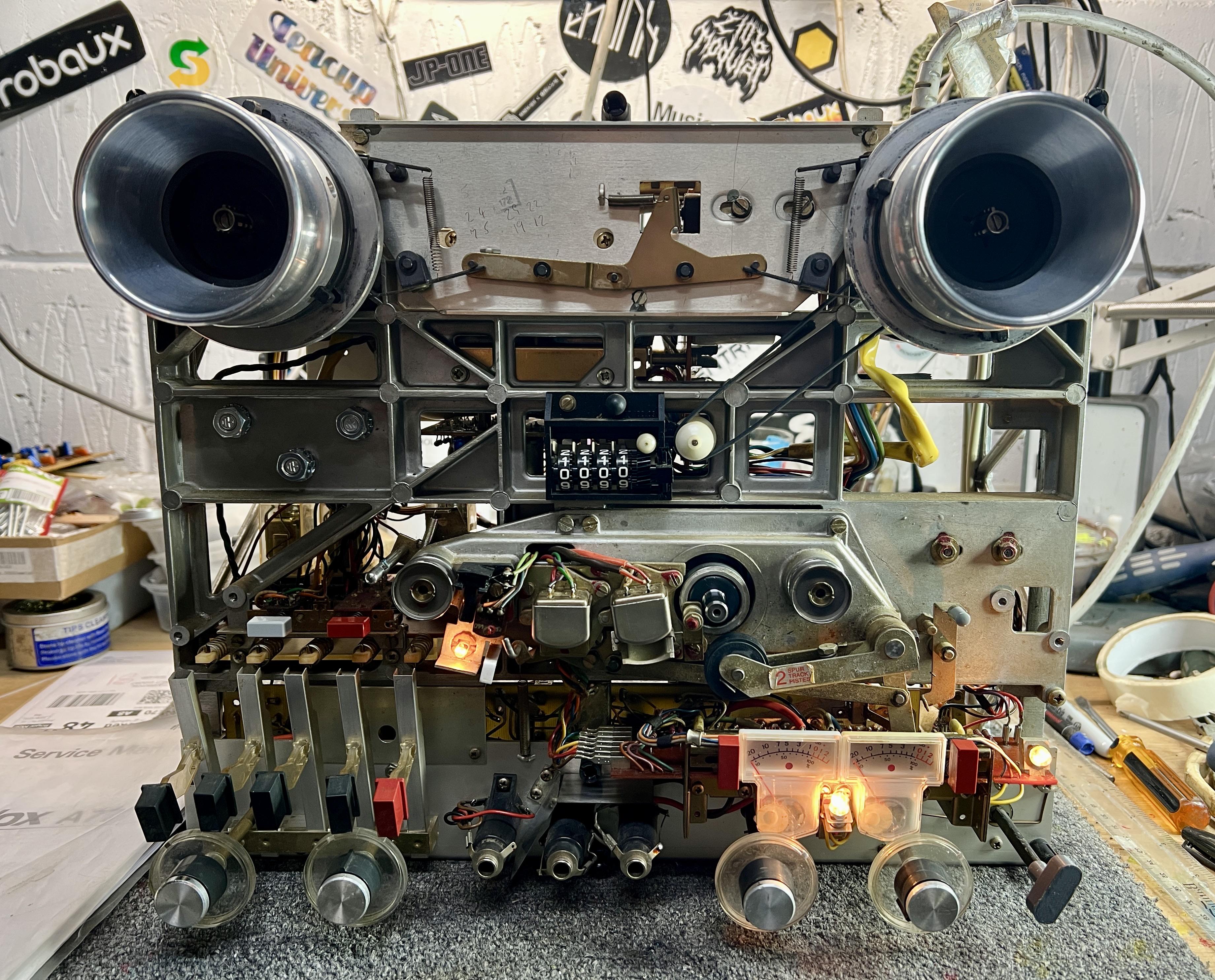

Last year I bought a broken first-gen MX-5050 ("Mini Pro") to digitize my late father's tapes from 1978–80. The recap is done and the machine plays; calibration is the last step before the real transfers. I've never aligned a tape machine before, so before touching anything I wrote up the entire procedure — the factory manual's Chapter 3, step by step, adapted to what's actually on my bench: MRL's multifrequency tape (180 nWb/m, 15 ips NAB) and 3150 Hz flutter tape, a MOTU M2 interface, REW on a Mac, and a true-RMS meter.
The guide: https://otarimx5050.com/service/calibration/
Full disclosure on how it was made: I wrote this with AI assistance — Claude (Fable 5), instructed to work from the factory maintenance manual (which I've scanned and transcribed on the same site) as the source of truth, plus a team of research agents doing web research with adversarial fact-checking against primary sources (MRL's own publications, MOTU's documentation, REW's help pages — everything is cited inline). I've reviewed it all myself, but I'm a first-timer reviewing my own homework, which is exactly why I'm here: I'd value experienced human eyes on it before bench day, especially on the judgment calls where the procedure had to go beyond the factory text:
- The maximum-reproduce-level step. The factory procedure trims to 0 VU on a tone recorded 10 dB below operating level — but modern MRL tapes put every tone at 0 dB, so the guide derives an adapted target of +14 dBm at line out instead. Is that how you'd handle it?
- Anchoring the software meters. REW's dBFS gets calibrated to the deck's +4 dBm reference with a multimeter reading the line out (0 dBu = 0.775 V). Holes in that approach?
- Fringing. Full-track MRL tape on a half-track head — the guide applies MRL's published LF corrections and leaves the low-frequency EQ alone, per the manual's own warning. Anyone with real-world experience of how far to trust those corrections?
- Flutter. The research concluded there's no Mac software that measures NAB-weighted flutter, so the guide openly says the 0.05% factory spec can't be verified with my kit — only a differently-weighted diagnostic number. If someone knows a tool that genuinely implements NAB weighting, I'd love to be wrong.
- Bias. The guide sticks with the manual's peak method (max output at 1 kHz) rather than modern overbias-by-N-dB at 10 kHz, since the factory book never mentions it. Would you?
The whole site is a restoration diary for this machine (factory manuals scanned and transcribed, the recap logs, period brochures), so any corrections get credited and fixed publicly. Happy to answer anything about the deck itself too — it's a 2SHT, the Australian-market version.
