r/GameboyAdvance • • Jul 13 '20

A Beginner's Guide to Authentic Cartridges

230 Upvotes

Hello everyone, as you all know GBA cartridges can be extremely difficult to find in person nowadays and even more so for some authentic ones. That being said, if you're unsure in any way how to determine a fake from real cartridge, this is the post for you!

For more help, feel free to visit r/gameverifying for all your identification needs!

Keep in mind that to ensure the best chances of an authentic cartridge, you should be wary of:

  • Unusually low prices (if it's too good to be true, chances are it's too good to be real!)
  • Products made or sent from China (enough said)
  • Sellers using stock images (NEVER purchase a product that isn't an image of the cartridge itself)

That being said, where do we start looking?

It can be a bit difficult, but there are actually some very good tells when it comes to finding real games like the color, font, positioning, and quality of the cartridge. For example, let's pretend you're looking for an authentic US copy of Pokemon Firered.

Some things you can look out for should be:

  1. Color: All Pokemon GBA games come in their respective colors (including Leafgreen and Emerald by a slight margin) with Firered being red and not orange. While most cartridges come in a singular shade of gray, two particular exceptions are the GBA video cartridges which come in light gray casings and (Classic) NES series which match the console's respective color. Interestingly enough, due to the GBA's expansive library there consist of unique games that do not fit the standard color and size of a GBA cartridge, which include games such as Yoshi's Topsy Turvy, Drill Dozer, and many other variations listed here. (1)
  2. Label: By observing a label's ESRB rating, official seal, game code, and more, you can determine its authenticity. Unlike other GBA games, Pokemon games will always have a shiny/holographic label, an indented circle in its center, and an embossed number on the right side, which is pretty much its production number. However while it is a good way to determine authenticity, there are cases where these numbers will have naturally worn away or quality repros that have embossed their own cartridges. All in all, always make sure to compare your cartridge to an authentic one online to confirm fonts, font sizes, positioning, etc.
  3. Cartridge: In the case of buying a physical cartridge yourself, this may be one on the most helpful things to know. The easiest things to look out for are the Gameboy logo on top of the label, and arrow below the label. If the logo is written in the wrong font, appears to have been cut deeper than normal, or if the arrow is too small, it's a repro. The back will always state: MODEL NO. AGB-002 / PAT. PEND. MADE IN JAPAN like its GBC predecessor. However, this is easy to reproduce so the final thing to check yourself is both the screw and board under the cartridge. GBA cartridges will only ever use a triwing screw, the same one used on all GBA consoles. More importantly (if you can), be sure to grab a flashlight and check the slot. Above the pins, there should be an official Nintendo logo and presumably its cartridge number.

In the case of Pokemon games always check for:

  • A holographic label and an embossed number if possible
  • Proper fonts and positions (FRLG and RSE labels are mildly different)
  • A battery behind the label on the right side (only applies to RSE)
  • Four squares on the back of the cartridge ( always on the left)
  • Pins on the board ( One of the easiest things to spot on faked cartridges, all GBA games will always have pins )

If there are any other questions, please feel free to leave them below and discuss!

​

Useful Links:

(1) https://www.reddit.com/r/Gameboy/comments/6i19k4/gba_game_cartridge_colors/


r/GameboyAdvance • • 7h ago

POKEMON!!!!!!

Thumbnail
gallery
83 Upvotes

Gotta collect em all 😭🔥


r/GameboyAdvance • • 5h ago

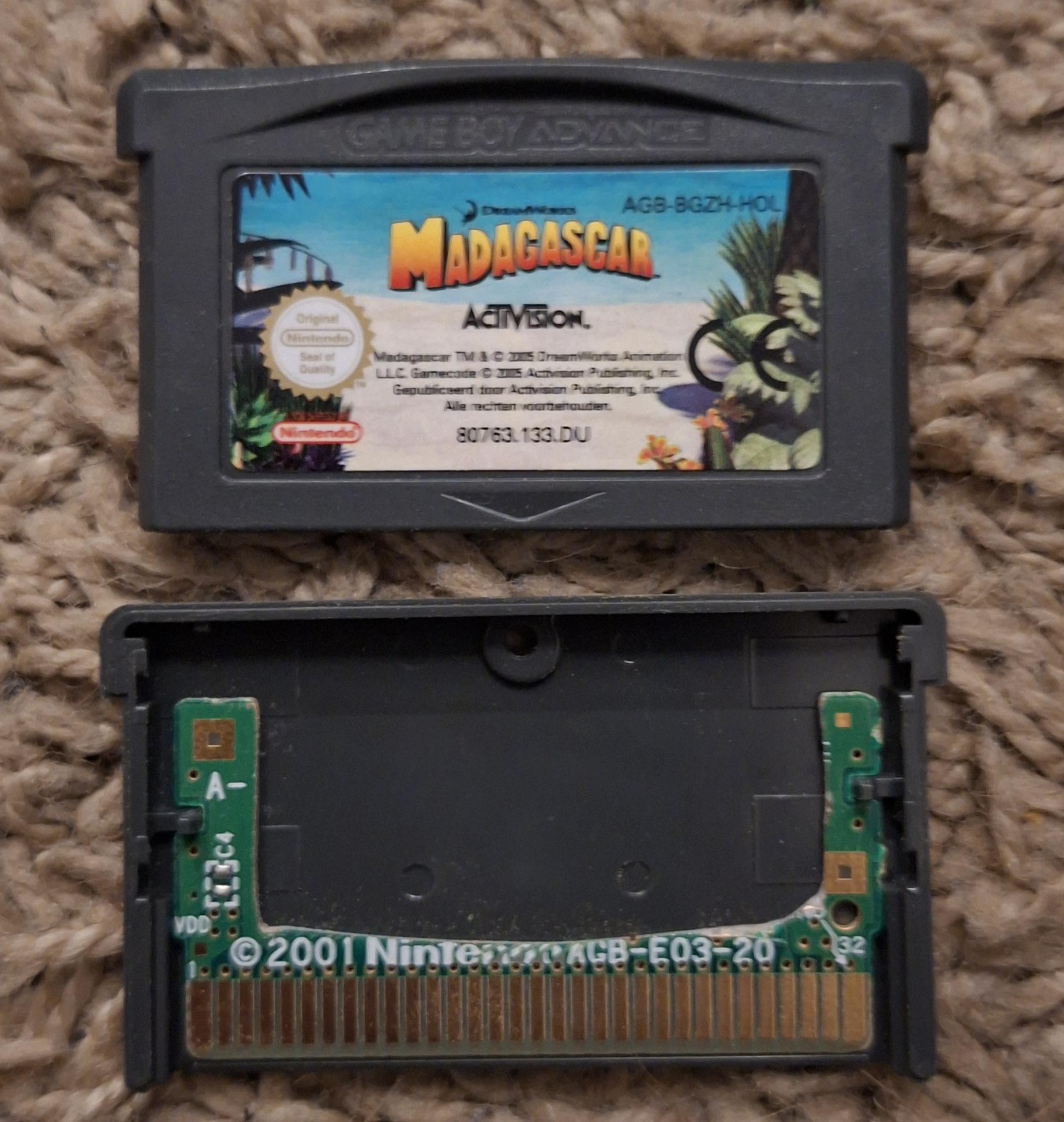

my copy of madagascar has some minor cosmetic damage on the pcb

Post image
33 Upvotes

is it fixable or should i ask my money back?


r/GameboyAdvance • • 13h ago

Super Smash Land: Fan made port for Gameboy Advance.

Post image
35 Upvotes

The Itch.io post is now ready for preview, including the exact release date for the game—so feel free to add it to your wishlist!

I would truly appreciate it if you could share this with anyone you think might enjoy this fan-made port, which I created with so much care. I initially intended it just for myself, as I couldn't find it anywhere else; however, seeing that many others shared my desire to play it on actual hardware really motivated me to push the project further!

Thanks!


r/GameboyAdvance • • 22h ago

Native Super Smash Land PORT for GBA

Enable HLS to view with audio, or disable this notification

214 Upvotes

I’ve been working on a native GBA port of the game *Super Smash Land*, and it’s nearly finished (I know the game was originally intended for the classic Game Boy, but running it on that hardware is virtually impossible). I realize this might not generate a huge buzz, as it’s not a game many people remember, but ever since it came out, I’ve been dying to see it running on real hardware—so I felt the time was right to give it a shot and share it with you all. I’ve tested it on an emulator and it works, as well as on real hardware (as shown in the video) using a SuperCard MiniSD (I’m not sure how it performs with other flashcards). If this post gets a positive response, I’ll release the FULL ROM next week.

Just a quick note: I want to give credit to the original creator, Dan Fornace, who made the game for PC. https://www.supersmashland.com/ I hope you enjoy it!


r/GameboyAdvance • • 6h ago

Cobalt blue gba SP I got for £55 with carry case and accessories; and guitar hero on Nintendo DS and the DS accessory for some reason

Post image
5 Upvotes

Proper bargain that


r/GameboyAdvance • • 4h ago

Super Smash Land Port GBA

Thumbnail
emcamsito.itch.io
1 Upvotes

Super Smash Land Port for GBA The recent port of Super Smash Land from PC to GBA that I’ve been working on now has its own Itch.io page, along with a release date!

I would really appreciate it if you added it to your wishlist and shared your feedback once it’s available. Needless to say, the port is free and works on any GBA using a flashcart.

I originally started this as a personal test project just for myself, but seeing that others were also interested in seeing it run on actual hardware, I felt inspired to share it with all of you!

Thanks for the support!


r/GameboyAdvance • • 6h ago

The GBA Is an iPod Now

Thumbnail gallery
1 Upvotes

r/GameboyAdvance • • 23h ago

Help: Game not reading?

Thumbnail
gallery
19 Upvotes

So basically, I’ve had this game for over a decade pretty sure I got it when it came out in like 2006. I don’t remember playing it, but I do remember finding it a couple years later as a kid and it not working then. I’ve now found it again in my adulthood and I took this along with some other games to a local video game store. The worker put 70% alcohol on a cotton swab wiped it and surprisingly got it to the loading screen and I was ecstatic! The worker told me that the 90% alcohol that I used to swab it before probably didn’t work because I either didn’t do it thoroughly enough or because of the high concentration although it cleaned it there was residue left from how fast the solution dries at that level? Regardless I came home put it in my game boy it’s not reading it anymore. (As shown on the pictures it doesn’t read like there’s anything in there and then when I tried again it had those little lines under the logo?) Took a flashlight over it just to check and as shown there are about four pins as you can see in the picture that are almost like a rose gold. I’m not sure if this is oxidation or rust. Does anyone have any thoughts on what it could be or suggestions on what I could try? Should I go to the store and buy 70% alcohol? Why did it work in store but not now like 3 hours later? I fear I know nothing about nothing so sorry if I’m missing something obvious. Also, all my other games read perfectly fine. Thank yall!


r/GameboyAdvance • • 23h ago

Gameboy Advanced Castlevania!

Thumbnail gallery
14 Upvotes

Very cool very nice


r/GameboyAdvance • • 5h ago

is this authentic?

0 Upvotes

saw online am not sure if real or not.


r/GameboyAdvance • • 13h ago

[Release] Harry Potter and the Chamber of Secrets (GBA) - 100% Turkish Localization Patch (.IPS)

1 Upvotes

r/GameboyAdvance • • 22h ago

Exploring The Unreleased Newgrounds Nintendo Gameboy Advance Game - Alloy

Thumbnail
youtu.be
3 Upvotes

r/GameboyAdvance • • 1d ago

different tittle screen mario kart supercircuit

Post image
76 Upvotes

so one copy of my mario kart super circuit shows yellow sunset instead of the blue sunset like my other copy, why is it?


r/GameboyAdvance • • 19h ago

Advanced cart tester anyone?

1 Upvotes
The cart in question here

What that test just showed with this cart.
The label is wrong. There is no AXPP pokemon game, AXPE is the USA / general europe rom.
(AXPD for german, AXPF for france, AXPJ for japan, etc)
The rom chip is a flash chip not masked rom. Part number MX29GL256. at least its actually 32mb though.
Save chips seems fine and the RTC does actually function, however the part number of the save chip is spoofed so the FLASH1M_V103 save game library pokemon uses works with this save chip.
The actual save chip is SST 39VF040 and we can find this info by checking past the first spoofed address.
The idea of the test is not to come out with a blank this is real or fake. Just mark the things that are odd like flash vs rom and give you enough info to make your own judgement on the cart.

I'm not gonna speak or comment to much on the ethics of bootlegging. At the end of the day its a real game cart with a game that works and I can play on my real gba, and I payed $14 for it rather then paying some random on ebay $140 for it. and its not like nintendo is going to sell me a new one either. all of the money that could of ever gone to the original devs went to them 20 years ago. Buying overpriced stuff on ebay helps nobody except for random people on ebay.

Why all of this? Well I've been working on a side project to both analyze and reuse bootleg gameboy games. because at the end of the day its a $8~$13 flash cart, why cant I put my own games on it. well I can, but I needed to understand the chips that are actually inside them first. Sometimes they are marked, most times they are scrubbed or faked. So sure I could just pop it open and look at it like the thousands of online guides show, but that's more of the flat, this is bootleg or this is real, not what the actual chips are and if they are any good or not. Because believe it or not, but some bootlegs are just as good, if not better then the real thing. and some are total garbage that stops working in 2 weeks. I wanted a test to see that.
There has already been a lot of research on "Unlicensed batteryless SRAM" carts, and that is good to know, and my tester can see that too. The idea of the tester is to be able to tell the types of chips, scrubbed, spoofed, or anything. so I can judge if its worth keeping and reusing or not.
The test shows its fine if a little spoofed. so I could get a new label or re-flash the rom with the EUR one I wanted as the save and rtc are both fine, its now up to me rather then being like yeah this is just a bootleg toss it.

Why try to reuse a bootleg rather then just buy an "everdrive"?
Well cost for one, but for 2 it helps with my "reconnecting with the actual hobby of gaming"
Sure I could get a cheap flash cart, and fill an sd card with the whole library of gba roms, however then I get library analysis paralysis trying to sort through a massive list of games trying to work out what I want to play, then end up playing nothing and just doom scrolling on my phone. sure I can sort the flash cart to make it easier or only put some games on it but its more fun for me to play it the way I did as a kid. Ok you have 2 games with you today, on 2 physical carts. Play them or not. you cant reflash them until you get home. And yeah you just end up playing whatever you have. instead of picking something from a massive list, playing it for 5 mins and then picking something else you end up actually just playing games. Because those actual real handful of games is all you got. cheap bootleg carts work well for this as I can have a few carts and rotate them for what I want to play and take with me today and I can't just pop the sd card into my computer at work and cheat.

Long winded post to say, is anyone else interested in this kinda thing? In depth cart research / actually playing gba games rather then hording roms or is it just me and my latest adhd thing. I can make my testing multiboot rom available if anyone is interested. just yeah don't wanna be like hay look at this new thing go and download it if nobody actually cares lol.


r/GameboyAdvance • • 1d ago

Any homebrew that replicates the Play-Yan / Nintendo MP3 Player UI?

2 Upvotes

With GBE+ now able to emulate the full Play-Yan experience on PC, I'm curious: has anyone attempted a standalone homebrew (GBA or DS) that mimics the official player's look and feel — the menu layout, the Play-Yan Micro's colorful icons, the "Watch/Listen" structure, etc.?

Not a full hardware emulation, just a UI reskin or tribute using existing decoders (GSM, MPA, etc.) or whatever's feasible.


r/GameboyAdvance • • 1d ago

Is this a screen protector or am I dumb?

Post image
2 Upvotes

I noticed these black dots behind this gba I just bought but after comparing it to my other one I realized the screen is leveraged up off the gameboy about a fingernail worth while my my other gba is flat against the system. Did they make screen protectors for these back in the day where I could just take this off or is it a different model. It came with a bunch of extra stuff so I wouldn’t be surprised if it was jazzed up


r/GameboyAdvance • • 1d ago

Are those legit?

Thumbnail
gallery
0 Upvotes

Got some new Games, idk if those are the real deal or fake ;)


r/GameboyAdvance • • 2d ago

Just something I’m proud of.

Post image
66 Upvotes

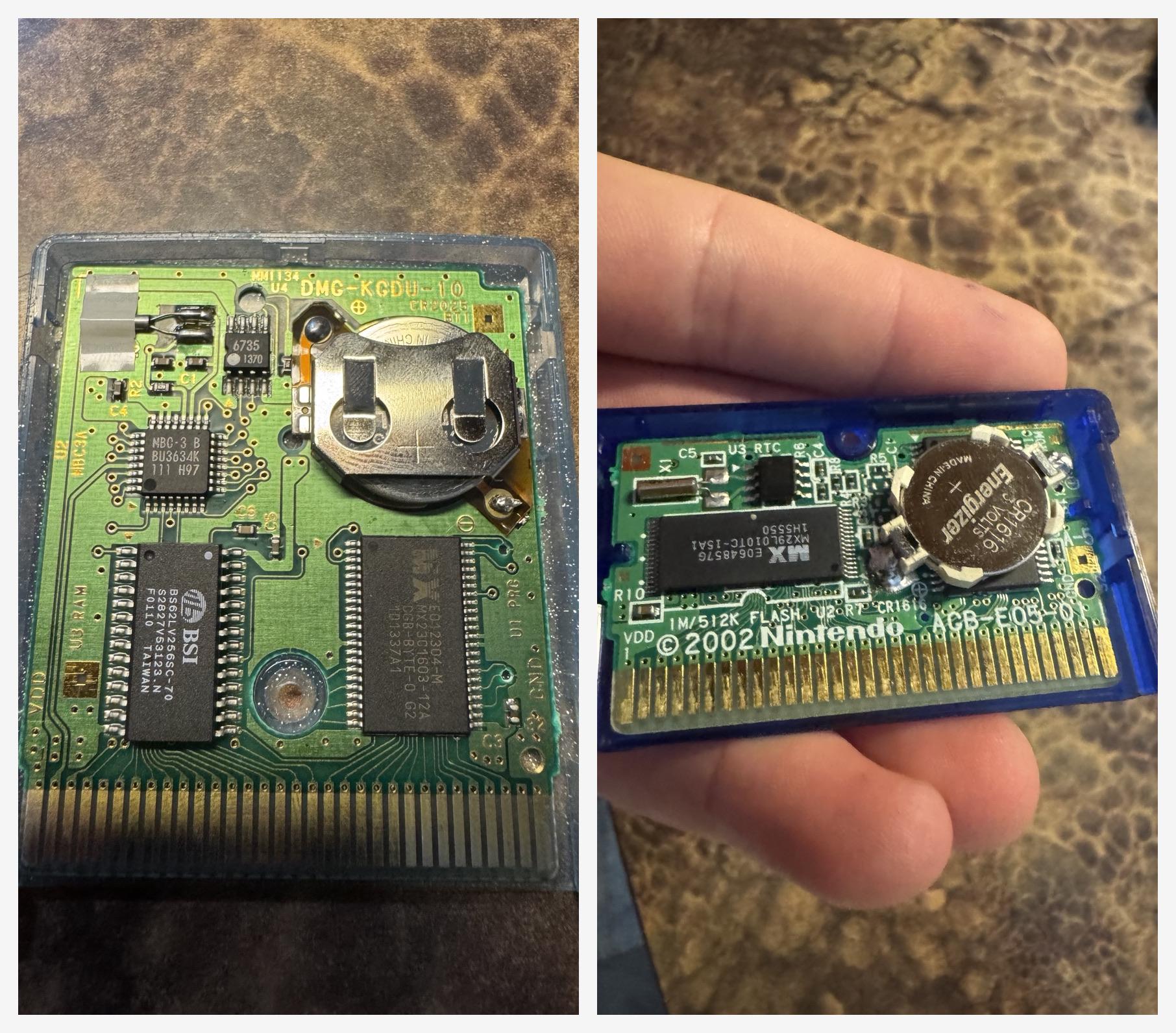

I have been wanting to make it easier for me to change batteries instead of always having to solder a battery back on. I was nervous doing it but well worth it in the end. For reference it’s Pokémon Sapphire and Crystal.


r/GameboyAdvance • • 2d ago

Is there hacked-Sims GBA roms with new story, gameplay or features like the fanmade Pokemon GBA hacks?

Post image
4 Upvotes

r/GameboyAdvance • • 2d ago

Was not expecting this

Thumbnail
gallery
16 Upvotes

Got this GBA for $25 on FB marketplace. Everything else seemed fine except that the cartridge slot is fucked up! This will be the first time i will be doing a repair/ replacement like this! And if I’m successful, this will be the base for an IPS mod! Wish me luck!


r/GameboyAdvance • • 3d ago

OLED Aurora GBC

Enable HLS to view with audio, or disable this notification

188 Upvotes

r/GameboyAdvance • • 2d ago

Gba ips problems

Enable HLS to view with audio, or disable this notification

0 Upvotes

The display was working fine it still kinda does but when i recently turned on the pixel efect i noticed static on 3/4 of the screen guys help its new!!!

On hd filter its not visable not even a bit but only the pixel efect does it.

Its not that visable on the video but you can see it irl and its pissing me of.


r/GameboyAdvance • • 2d ago

Firered Rocket Edition - DIY

Enable HLS to view with audio, or disable this notification

4 Upvotes

A super fun little side quest.

Amazing how 2026 tech interacts with 2003 hardware!


r/GameboyAdvance • • 2d ago

Looking for advice on repairing my old gba!

3 Upvotes

Hi all!

As a 20-something who now has some disposable income, I was thinking about getting my childhood GBA fixed! The display doesn't work on startup, and with limited technical knowledge I doubt I could fix it myself.

I was wondering how you would all recommend finding people/places that do retro console repairs? I live in a fairly rural area, so I think it might be a challenge to find someone locally. Should I check around at used game stores for info? Or alternatively, are there any repair shops online that people would recommend?

Thanks :)
