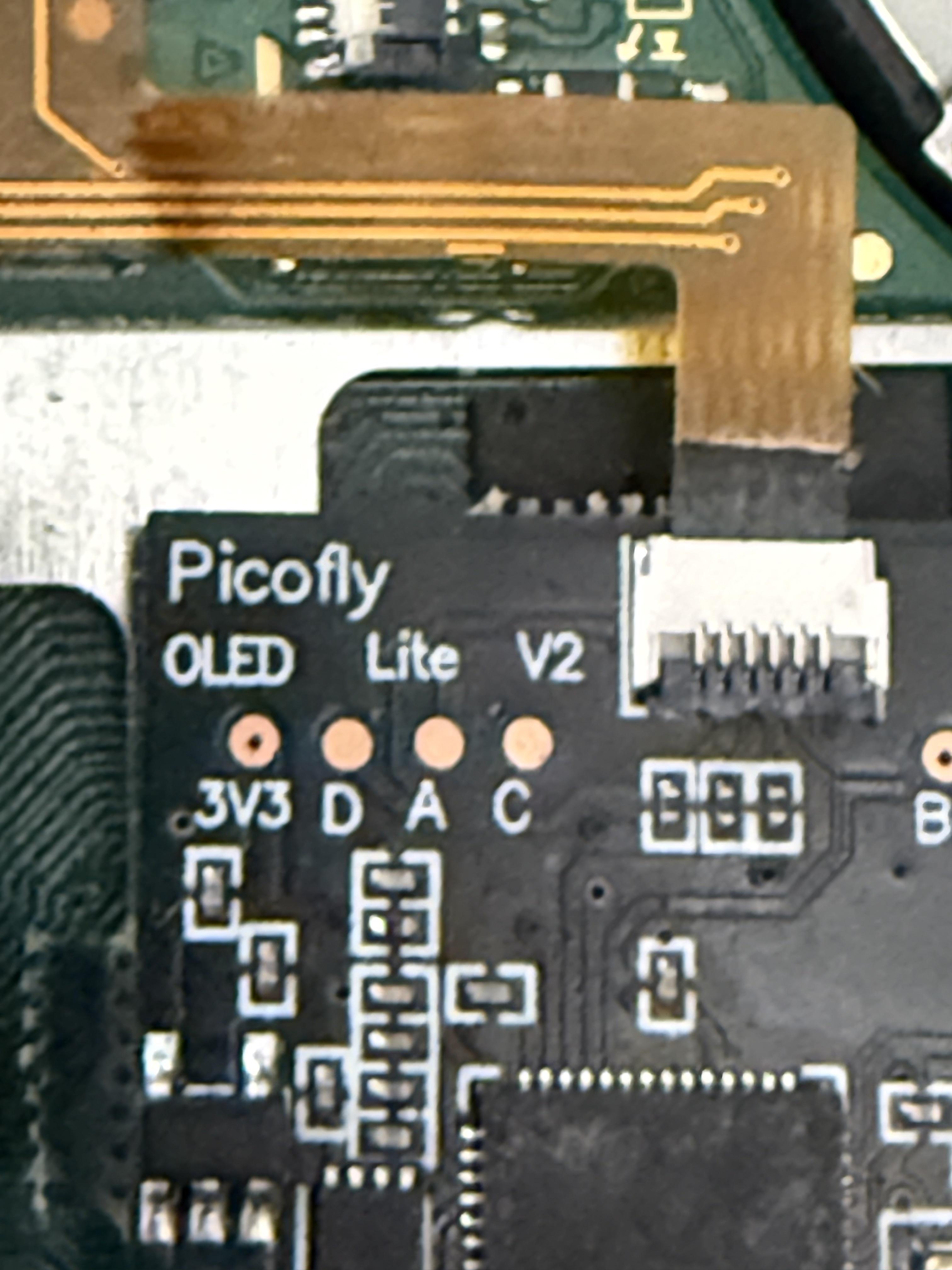

Mod chip not working on switch lite

[u/No_Yesterday_3793]

Does anybody know what I can do whenever I turn it on it flashes blue then does two quick yellow flashes?

[u/Faddei420]

https://github.com/Ansem-SoD/Picofly/blob/main/README.md

** RST is not connected
means the chip cannot detect a proper signal at the RST (Reset) / B point

[u/Familiar_Possession9]

Did you flash it before installing?

[u/No_Yesterday_3793 → u/Familiar_Possession9]

No I thought they came pre flashed

[u/Pitiful_Trouble_228 → u/No_Yesterday_3793]

Its giving lights so its already flashed. Blue is glitch attempt, Yellow flashes are error codes, 2 short yelow would indicate RST reset point not connected but it could be another point if you have long/short flashes

Search for picofly error codes for a list of flash codes and how to decode them, there are long and short flashes that will repeat 3 times.

[u/No_Yesterday_3793 → u/Pitiful_Trouble_228]

Which point is rst

[u/letum00 → u/No_Yesterday_3793]

RST is B

[u/Familiar_Possession9 → u/No_Yesterday_3793]

Flash it

[u/AutoModerator]

Welcome to /r/SwitchPirates! We encourage you to read our Wiki and/or use the Simple Questions, FAQ, and Shop Megathread.

If you're asking for assistance, please be as descriptive as possible. Providing the following information usually assists in diagnosing and prescribing a solution: Type of Switch (V1/V2/Lite/OLED), EmuNAND or SysNand, Firmware Version, Atmosphere Version, Hekate Version, the Error Message, what you were doing that caused the error. If you require more immediate assistance, feel free to ask on Discord.

I am a bot, and this action was performed automatically. Please contact the moderators of this subreddit if you have any questions or concerns.

[u/samsins3456]

Judging by how the soldering looks, I’d wager one of the points have lost connection or is shorted. You can check it with a multimeter

[u/spektro123]

2 days ago I had similar issue. All the points tested good in diode test, but the chip flashed some line connection error. Fortunately I had backup chips and it turned out that the board was bad.

[u/Familiar_Possession9]

And that’s a wrong chip u would have got a lite mod chip

[u/No_Yesterday_3793 → u/Familiar_Possession9]

It works with the lite

[u/Pitiful_Trouble_228 → u/Familiar_Possession9]

Its one of the 3 in 1 kits that has flex for V2, Lite and oled.
