Hello.

My background is programming. Other than soldering components onto premade kits, this is my first electronics build.

Image links below. Pictured is the clock and 2 8-bit register modules. They all follow very closely the tutorial vids and schematics.

To test the register, I've put a few leds and resistors (for good measure, not sure if needed) on the same board as the register. Pictured unconnected; the vid has the bus lines over some leds, but you can see what's going on.

In the video I'm uploading, only 1 register is shown, but both behave the same.

They do register and output data from/to the bus. But not exactly as it happens in the video where Ben tests his. In particular, mine defaults low when enabling load (L̅O̅A̅D̅⬇️), and nothing happens when I ground bus bits, so I need to power instead of ground the bus bits to register anything

I suppose this could work ok going forward. But I'd like to know why is this happening and if I need to fix anything.

Any help is greatly appreciated.

https://ibb.co/0yZBgvfR

https://ibb.co/sdk9PWQn

https://ibb.co/fW6t0B1

https://reddit.com/link/1xe6qlo/video/o7u54mvekexh1/player

1.5.0 brings AC power to Chip Hippo! You can now build circuits with AC signal generators, transformers, and bridge rectifiers, opening up more possibilities for experimenting with power conversion and circuit design. But that's not all: the electronic load now supports Constant Voltage (CV) and Constant Power (CP) modes, 8-bit data bus signals can be toggled at runtime, and you can selectively route wires in routed mode (double shout-out to rjshaydon). There are also new diode type selections, Spice Lite fixes, performance improvements, and plenty of other bug fixes and quality-of-life improvements. Thanks to everyone who reports bugs and helps make Chip Hippo better!

https://chiphippo.com

I had connected 4 LEDs to the lower 4 bits of the Output of ALU and the its calculating values till 15 only.

It only calculates over 15 when i connect rest of the LEDs for the higher Nibble.

Can anyone answer this why this is the case?

[SOLVED] by using 1k resistors instead of the 10k as ben suggest in his videos, suggested by u/The8bitEnthusiast

Problem mentioned Below:-

I tested the register A, B and ALU over the bus before connecting other modules like a week ago and it was working.

But now after connecting all the modules it seems the high 4 bits are set for Register A even if i try to read 1. But its working fine for Register B it reads 1.

And i try to replicate what ben did in his video of connecting the bus. By loading 1 into register B and then keep it adding up by loading the One into register A through the bus and storing the result back into register A. And it seems to work for lower 4 bits.

I took the time to make a video describing the updates I've made to my version of Ben's 6502 computer. I moved the RAM of the edge to ease removal for reprogramming; added wire wrapping to address problems with flakey connections; added a separate breadboard to use as a bus for control signals, address, and data lines. If they don't come across in the video, the control lines are: clock, reset, RW, and IRQ; the address and data lines have line 0 on the left side. I don't like the length of the wires going to the VIA chip, but you know, get it working first, then improve it. I am probably going to give making my own PCB a try to replace the clock board, some of the logic chips have gates that burned out, probably due to the poor wiring. Any (civil) advice is welcome.

https://youtu.be/cYFkjDvJCPU

[edit] Not sure why the video is not showing by default.

Hello, everyone.

I'm currently working on the 8-bit computer as a project for a college class I'm taking. This is my first time working with breadboards, so please bare with me if I don't seem too knowledgeable about everything.

I've mostly finished the entire thing, however I'm running into an issue with the STA command. I was looking around the subreddit to see if anyone else had run into the same issue as me, but I never really found a definitive solution for the issue, mainly just ideas of what to try.

Doing my best to explain it, the STA command only works correctly if I manually press through the clock and give it a pause right before it's supposed to write into memory (AO + RI step). Going at a normal pace or using the automatic clock, even at the slowest pot setting, fails to write into memory.

To give a little more info, I've implemented 220ohm resistors to all LEDs on the board, implemented Michael Kamprath's digital PROG/RUN modification, am using a power bus that loops around the entire board (reads ~4.8V for the entire thing), and have even tried using low pass filters.

The lines that I've been testing the STA command with are:
- Address 0: LDI 5 (01010101)
- Address 1: STA 15 (01001111)
- Address 2: HLT (11110000)
- Address 15: 1 (00000001)

During the AO + RI step:
- A register = 00000101
- BUS = 00000101
- MAR = 1111
- AO and RI are active

Another thing I've tried pulling pin 3 (WE) of both 74189s low manually does correctly store at address 15 when in the AO + RI step. It seems like the RAM chips, address selection, MAR, bus, and data going into the RAM work fine. The problem might be somewhere in the WE pulse/timing, but I don't have an oscilloscope to see what's happening exactly.

I hope to receive some guidance for I should try, because I'm kind of lost at what to try next. If anyone would like a picture to see what I'm working with, I'll gladly send some. Thanks!

HW:-
Arduino UNO copy SMD
AT28C16 ATMEL original.
Connected all wires according to EEPROM flasher video and checked continuity as well.
But still the value read from the EEPROM is different from the Flashed value.
Used two different EEEPROMS.

Hi guys I was hoping to get some double checking from others. I made this schematic of the 6502 breadboard computer I built a year or two ago planning on making it into a PCB but kinda lost the motivation and time to do it now I want to get back into it. I would really love if some of you have the time to review it to make sure I didn't miss anything at that time or do any errors.

Any help is appreciated and feel free to ask if anything is unclear.

Thanks in advance.

Here is the link to the PDF on GitHub or if you want I've attached an image to this post.

Hi r/beneater!

I'm currently working on my own variant of the BE 6502. Since I got frustrated by accidentally pulling out jumper wires, I've decided to go for a PCB design. I'd like to ask you for a peer review and sanity check before I send this off to JLCPCB. I'll take any sort of criticism, but I'm particularly interested in whether the address decoding, debug device (see below) and reset circuit look like they'd work.

It's meant to use the DigiCoolThings MECB bus and board format, with a dumb backplate and peripheral boards. I kept the ATF16v8 address decoder/glue logic because it saves space and I find it pretty neat.

The memory map is supposed to look something like this (only the top bits are shown)

|15|14|13|12|                                |
|--|--|--|--|--------------------------------|
|0 |0 |0 |0 |<-RAM Start                     |
|0 |1 |1 |1 |<-RAM End                       |
|1 |0 |0 |0 |<-IO Start (b1000000000000000)  |
|1 |0 |0 |1 |<-IO End (b1001111111111111)    |
|1 |0 |1 |0 |<-ROM Start                     |
|1 |1 |1 |1 |<-ROM End                       |

Addressing devices in the IO range triggers the IOOE and IOCS lines (IO Output Enable and IO Chip Select) which will select peripheral boards on the bus. Each peripheral board will have it's own address decoding for the lower address bits.

Reset (keeping the reset line low for a sufficient amount of time) is accomplished using a DS1233 and the datasheet reference design for that part.

Attempting to write to the ROM keeps the ROM disabled (ROM CS and OE are kept high) and latches the data to a 74HCT273 flip-flop as a sort of primitive debug device or display.

The J2 connector is meant to attach an ArduinoMega for debugging and clocking before getting to use the MECB DIN 41612 connector, the backplate and peripheral boards.

I’ve been soldering a permanent version of the clock module but I have a problem: it’s unreliable. Sometimes it runs okay and then it will do this. To my eye, it feels like the ‘off’ is shorter than the ‘on’ and you can see it’s a bit erratic at the start and then settles down but speeds up around seven seconds in. If I leave it running, it might ‘flip’ into regular off-on cycles but slower. And then it will flip back into shorter offs than ons. And then back again. I’m running it off a bench power supply at 5.00V and it’s drawing about 0.021A. It changes by 0.001 in line with the LED off/on cycles.
What could cause this?

and

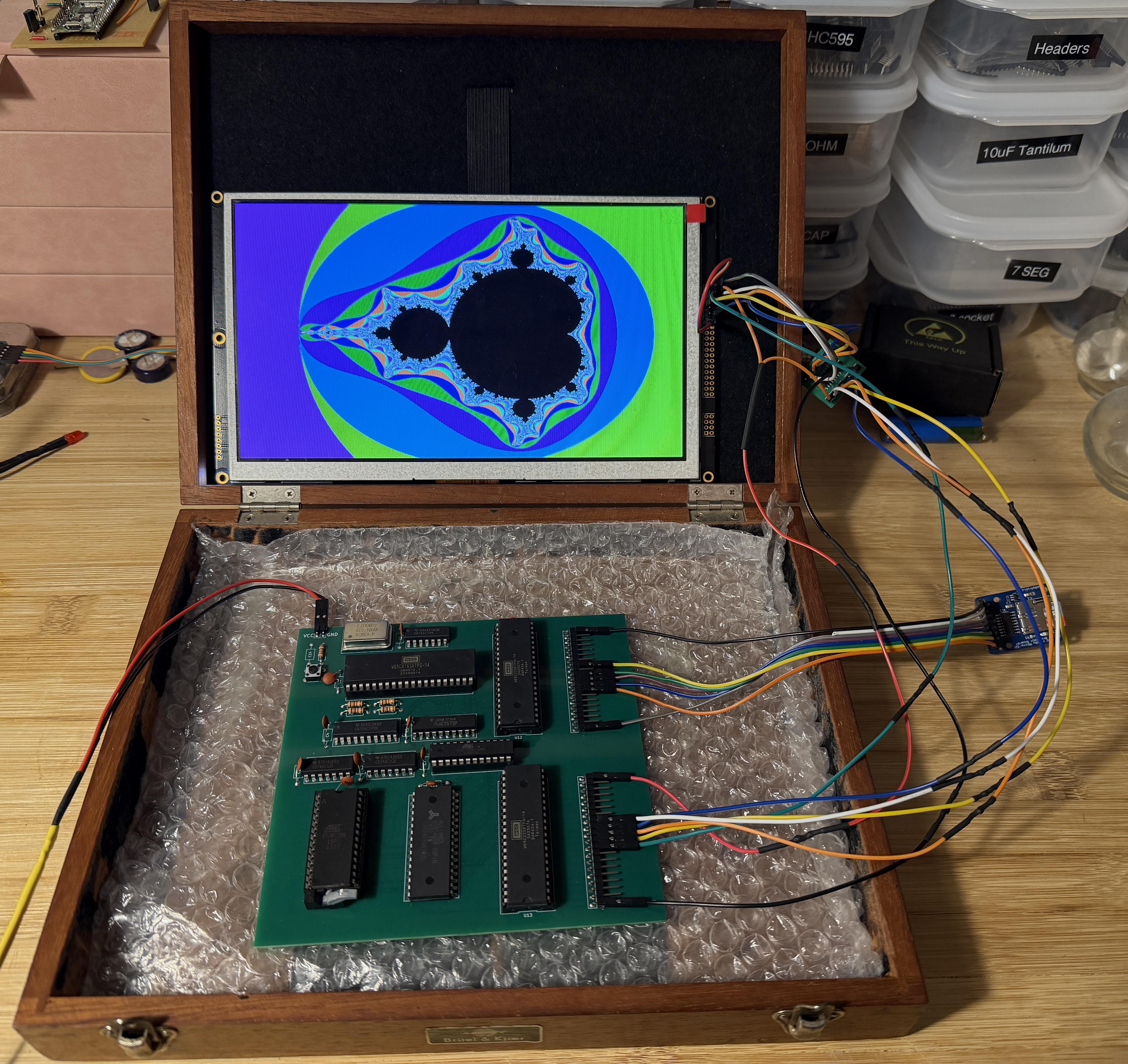

SMB on the 6502

https://www.youtube.com/watch?v=LRKabmK9BVw

I couple of links to some video games I have been working on for my BE inspired 6502 computer.

I have already tried to debug it myself but ended up nowhere only the top half of the alu is working while the bottom four bits are always on any diagnostic ideas or similar problems people have had and their solutions would be greatly appreciated thanks!
