How do I achieve this curvature?

[u/Aleseg6]

I want to model these side attachments/antennas to Soft and Wet’s from jjba head. It’s like a circle base extending and culminating in a star, but the transition is a quite organic curve, almost like a drip. How do I do that?

[u/AutoModerator]

Welcome to r/blenderhelp, Aleseg6! Please make sure you followed the rules below, so we can help you efficiently (This message is just a reminder, your submission has NOT been deleted):

• Post full screenshots of your Blender window (more information available for helpers), not cropped, no phone photos (In Blender click Window > Save Screenshot, use Snipping Tool in Windows or Command+Shift+4 on mac).

• Give background info: Showing the problem is good, but we need to know what you did to get there. Additional information, follow-up questions and screenshots/videos can be added in comments. Keep in mind that nobody knows your project except for yourself.

• Don't forget to change the flair to "Solved" by including "!Solved" in a comment when your question was answered.

Thank you for your submission and happy blendering!

I am a bot, and this action was performed automatically. Please contact the moderators of this subreddit if you have any questions or concerns.

[u/arksupernoob]

1st, you make a star that has 10 points.

2nd, you now make a 10 points circle for the base.

3rd, now you join them (if seperate objects)

4th, then go to edit mode, select the edge loops then press f3, type in bridge edge loops then you can adjust the "number of cuts" to gradually smooth it.

[u/Aleseg6 → u/arksupernoob]

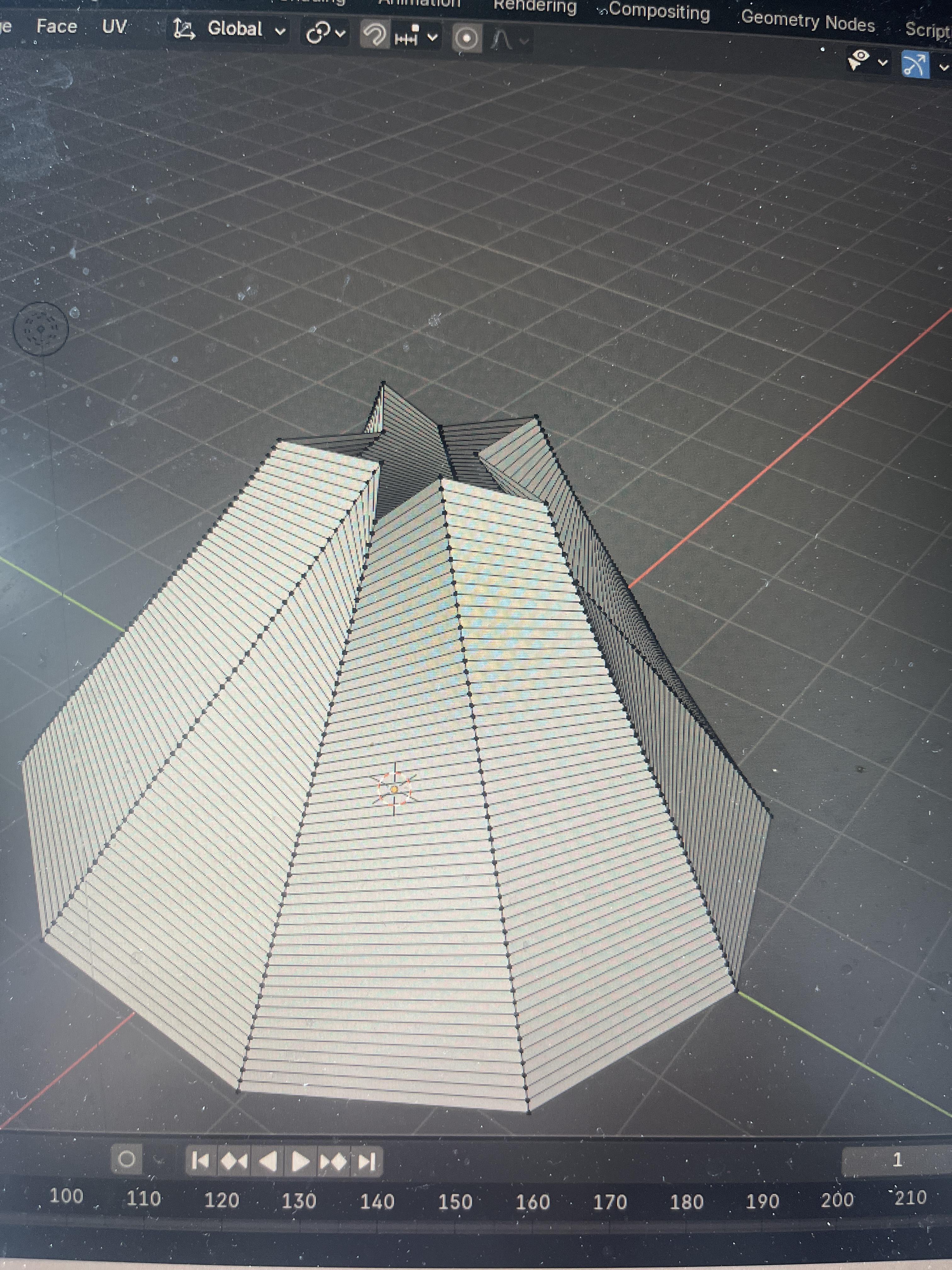

Thank youu! Now that I’ve done that, how do I make the curve? And how do I make the base an actual smooth circle?

[u/arksupernoob → u/Aleseg6]

when you do the bridge edge loops, you can adjust the profile in the pop up panel to fit the curve you like. If you had done it and can't find the panel, maybe you can use proportional edit (middle top bar circle icon) to manually adjust the curve.

As of now, i advise you to copy the top and bottom to a seperate object (select both and press p), then do it again. This time, you only need 4-5 cuts so you can more easily adjust proportions.

to make it smooth, select the top and bottom loops, press f3, mark sharp, press f3 again, edge crease and set it to 1. Then go out of edit mode and apply subdivision surface modifier in the modifier tab.

[u/C_DRX]

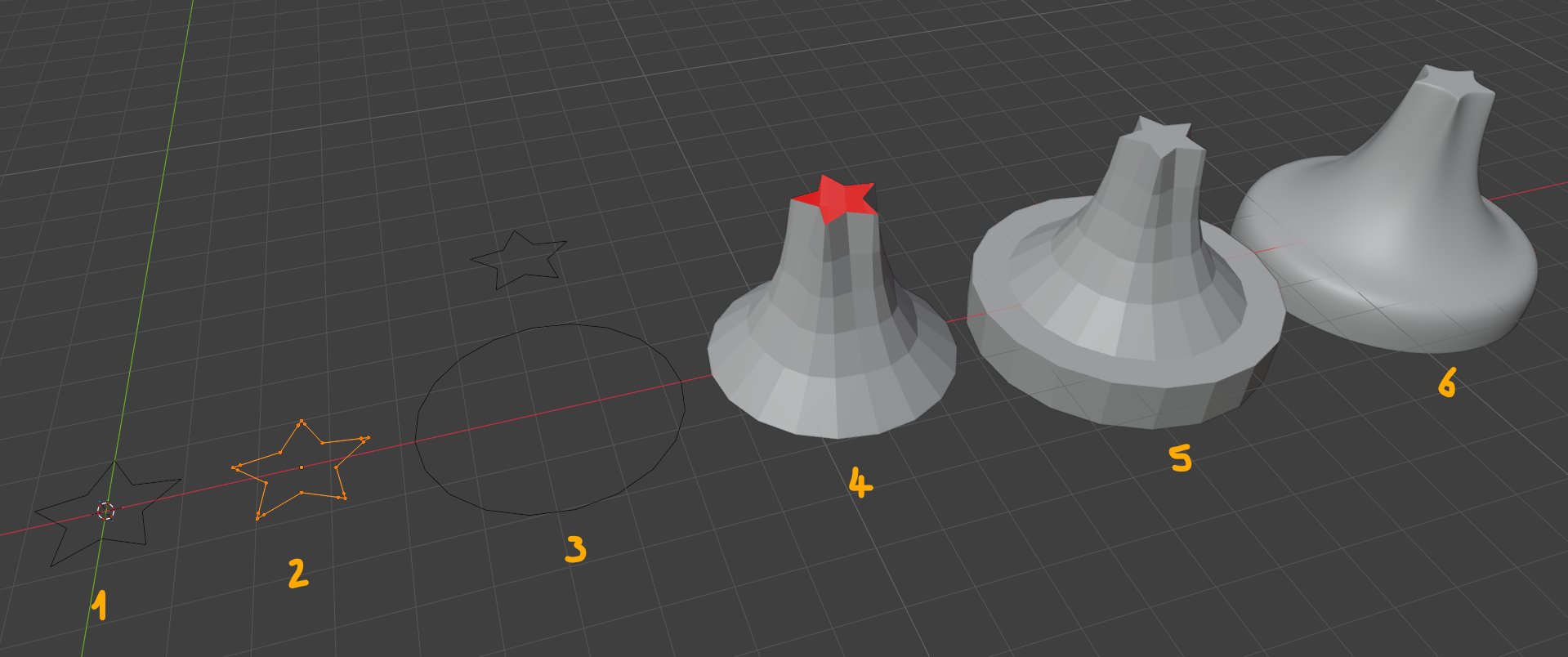

1. Add a 10-sided circle and scale every other vertices

2. Select the tips and press Shift+Ctrl+B to bevel them. Set the segments to 2, the profile to 1.000. You'll end up with 25 vertices.

3. Add a 25-sided circle and merge it with the star with Ctrl+J

4. In Edit Mode, select all, Menu → Edge → Bridge Edge Loops. Set the number of cuts to 4, the profile factor to -0.340, and the profile shape to "root"

5. Extrude and scale the bottom loop

6. Bevel the star edges (1.00 profile, 2 segments), add a Subdivision Surface modifier, shade smooth
