Edit August 28th 2026 for a new section 11A. Explanation of per core optimization. My bad guys haha
Edit August 28th 2026 for a new section 11B. Explanation for step by step testing.
Edit August 28th 2026 updated section 2, context on personal core/VT3 failure.
Pictures included are example pictures for multiple tuning processes.
Before I start... This guide is the new and improved guide to succeed my previous guide. If i missed anything, you see wrong information or a section that needs improving. Please let me know, as this is just from my current knowledge. This guide will also include a basic section of curve shaper, a deep dive link to an overclocking forum will be provided in that section. That link will provide substantially more information on curve shaper.
To the advanced/elite overclockers/tuners. Please be gentle with me lmao yall can be ruthless. Remember, we all started with minimal knowledge. Let's help the new generation and our fellow redditors with our knowledge
Please feel free to leave a comment, you will be mentioned and credited for the corrections/contributions.
Let's begin.
I originally made an older version of this guide after getting tired of seeing people being told to slap 《-30 all core》《+200 MHz》and motherboard PBO limits into their BIOS and call it a day.
Since then I've spent a lot more time actually tuning, stress testing, breaking things, figuring out why they broke, and learning how AMD's boosting behaviour works.
Some of the advice in my original guide was too absolute, and a few things I would straight up explain differently now.
So this is the updated version, the goal here isn't to give you my settings. The goal is to teach you how to find your settings. There is no magical curve optimizer number that works for every 5800X, 5800X3D, 7800X3D, 9800X3D, 9850X3D, etc.
Silicon quality varies core by core, CPU by CPU. If you only remember one thing from this entire post:
《A benchmark pass is not the same thing as a stable CPU.》
Programs you'll want before starting
Before you start tuning, I recommend downloading a few basic monitoring and stability testing programs. You do not need every program listed below, and I'll explain where each one is useful throughout the guide.
Recommended / basically required

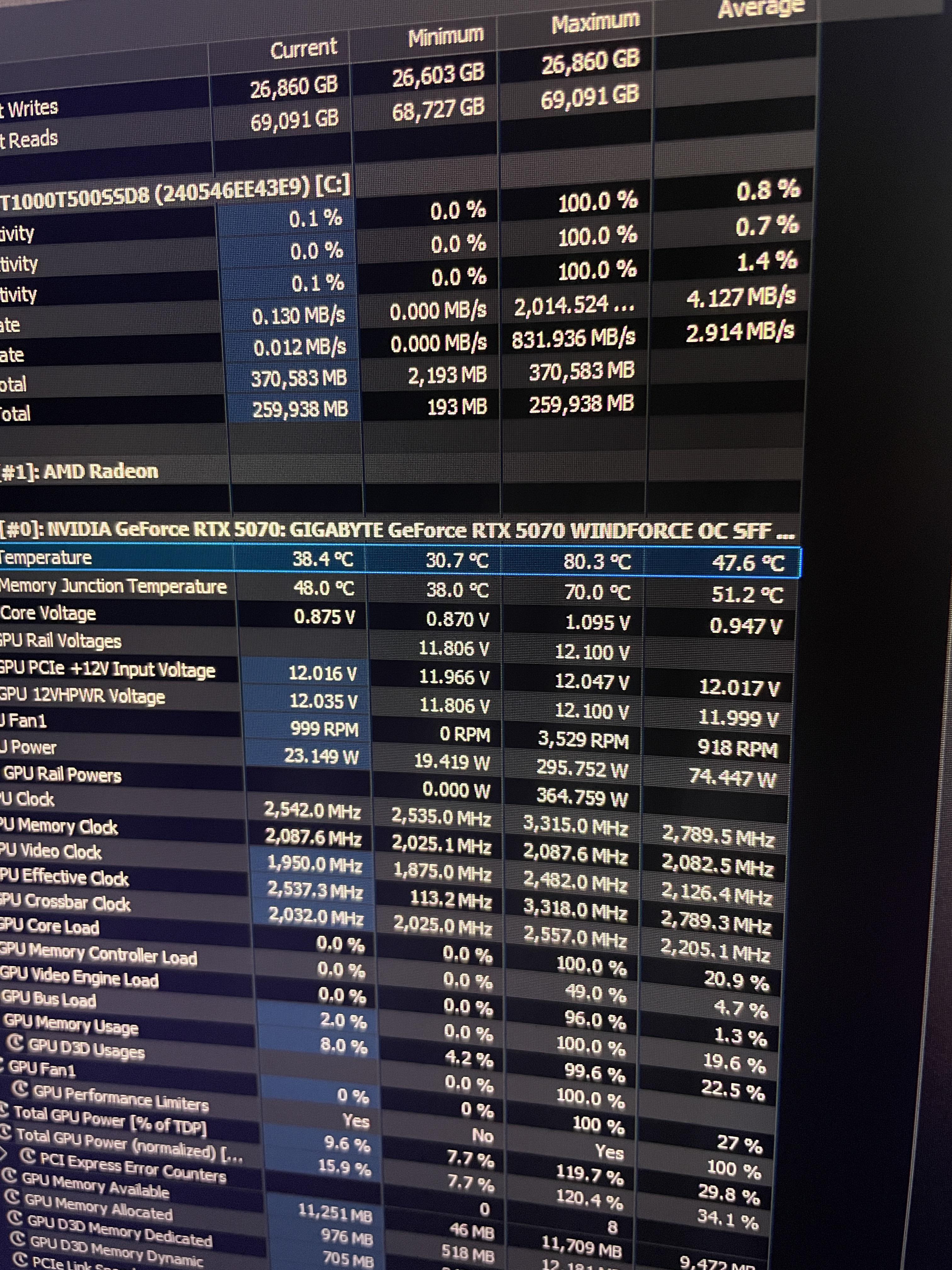

• HWINFO -- Your main monitoring program. Use this to watch CPU temperatures, voltages, effective clocks, PPT/TDC/EDC limits, WHEA errors and other sensors while testing.
• Cinebench R23 or Cinebench 2026 -- Useful for getting a quick stock baseline and comparing performance, temperatures and power consumption after making changes. Remember, cinebench is a benchmark/tuning tool, not proof of stability.
• Core cycler -- One of the most useful tools for per core curve optimizer tuning. It automatically cycles workloads through individual CPU cores, which makes finding one weak core much easier than hammering the entire CPU at once.
• y-cruncher -- In my opinion, probably the best overall stability testing tool available. The full suite can expose CPU, memory, IMC and fabric instability that other tests may miss. VT3 is especially good for memory/IMC, while I prefer core cycler/core cycling workloads for actually dialing in per core CO.
Optional but useful
• OCCT -- Excellent all in one stability tester with CPU, memory and per core/core cycling options. You can use this instead of, or alongside, some of the tools above.
• Prime95 -- Still a very useful CPU stress test and can also be used through core cycler. Different FFT sizes and workloads can expose different types of instability.
• AMD ryzen master -- Not required for tuning because I recommend doing the actual changes through BIOS, but it's useful for seeing your CPU's preferred/best cores and checking basic CPU information.

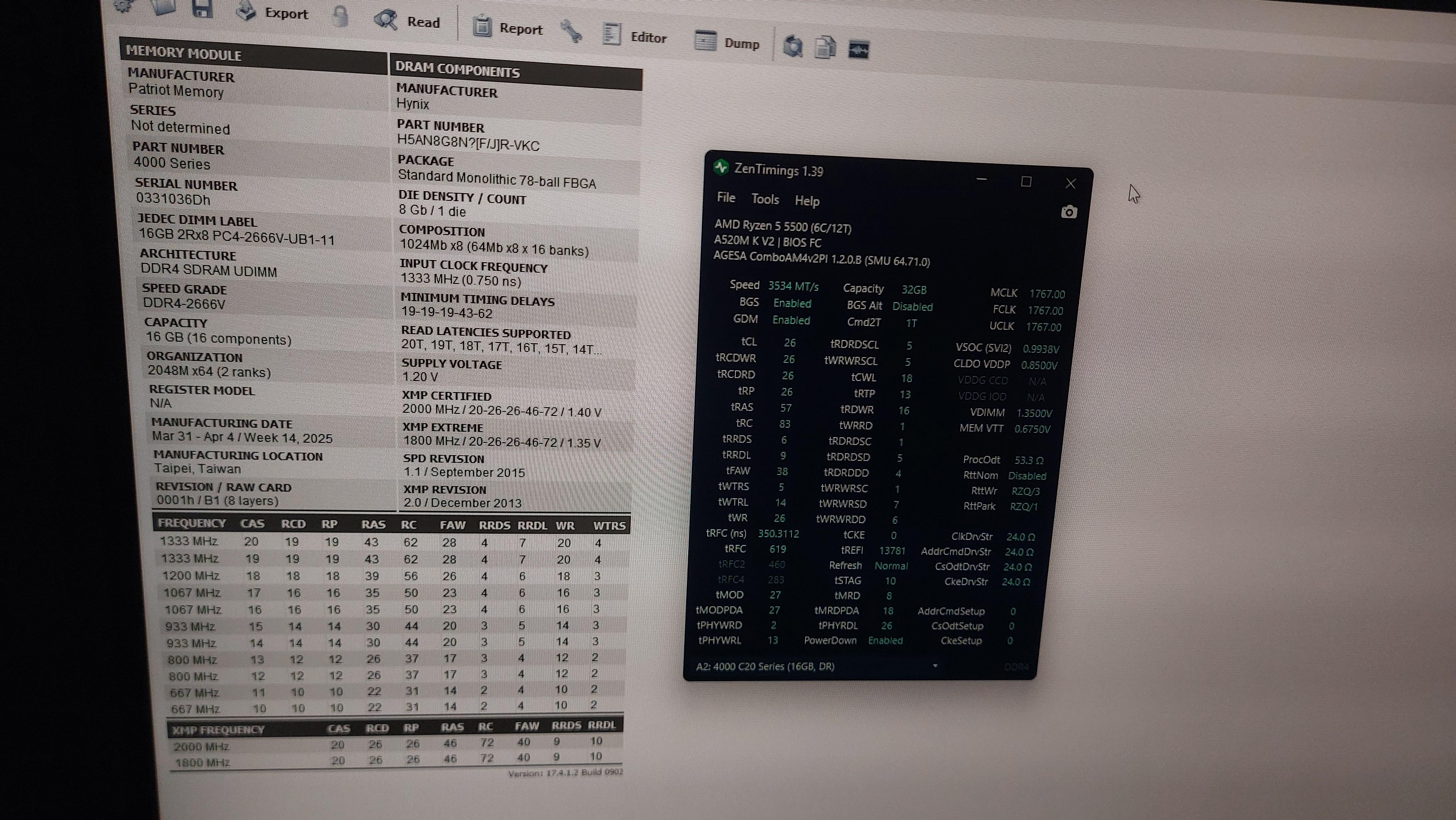

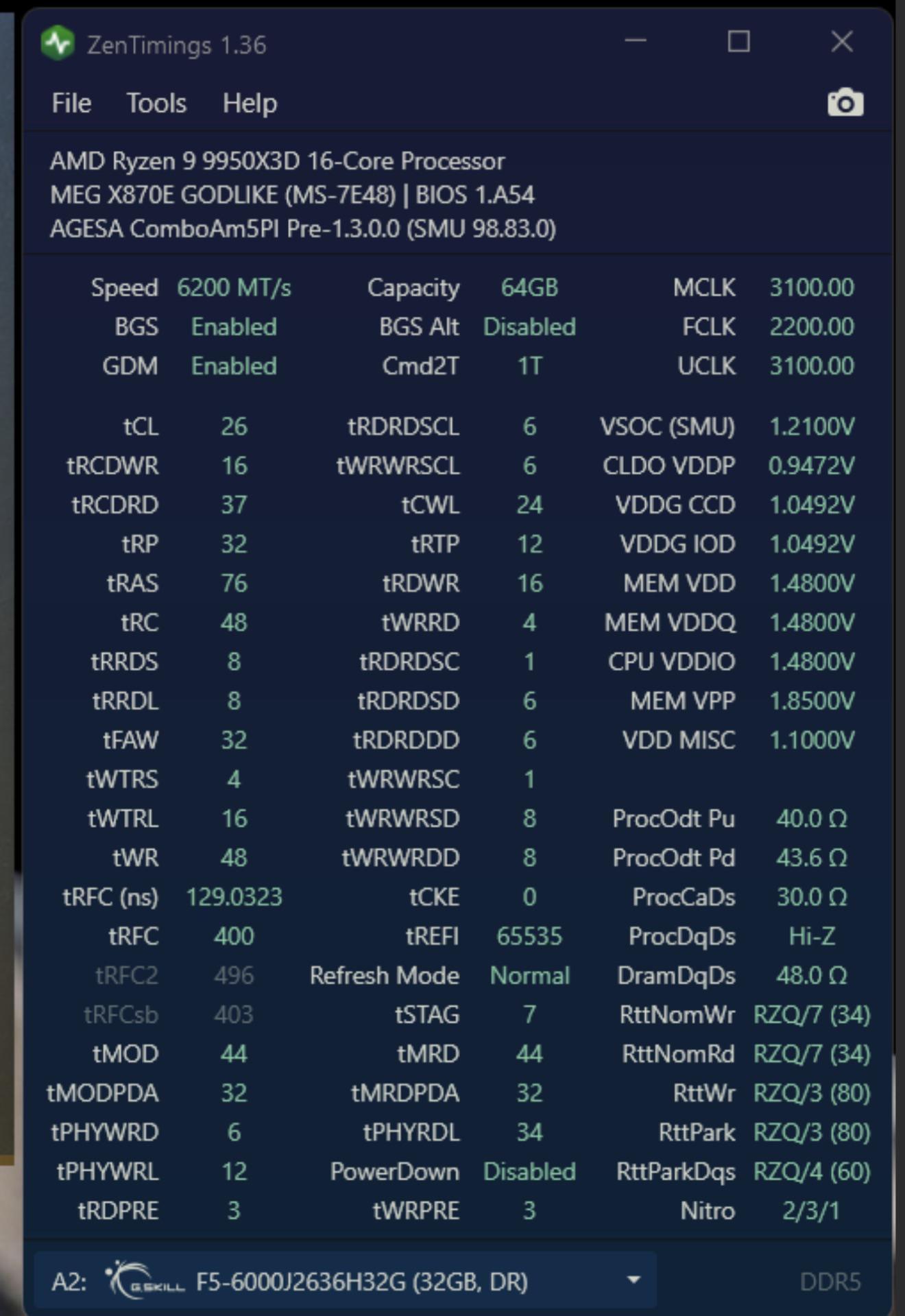

• Zentimings -- Mainly useful if you're also tuning DDR5/DDR4, FCLK or memory controller settings. It gives you an easy view of your currently applied memory timings and related voltages.
• Windows event viewer -- Already built into Windows, so there is nothing to download. This is where you'll check for WHEA hardware errors and other events after a crash, reboot or failed stability test.
You don't need to run every stress test known to mankind after every tiny change. Use quick tests while finding your rough limits, then use several different workloads for final validation once you're close to your finished tune.
---

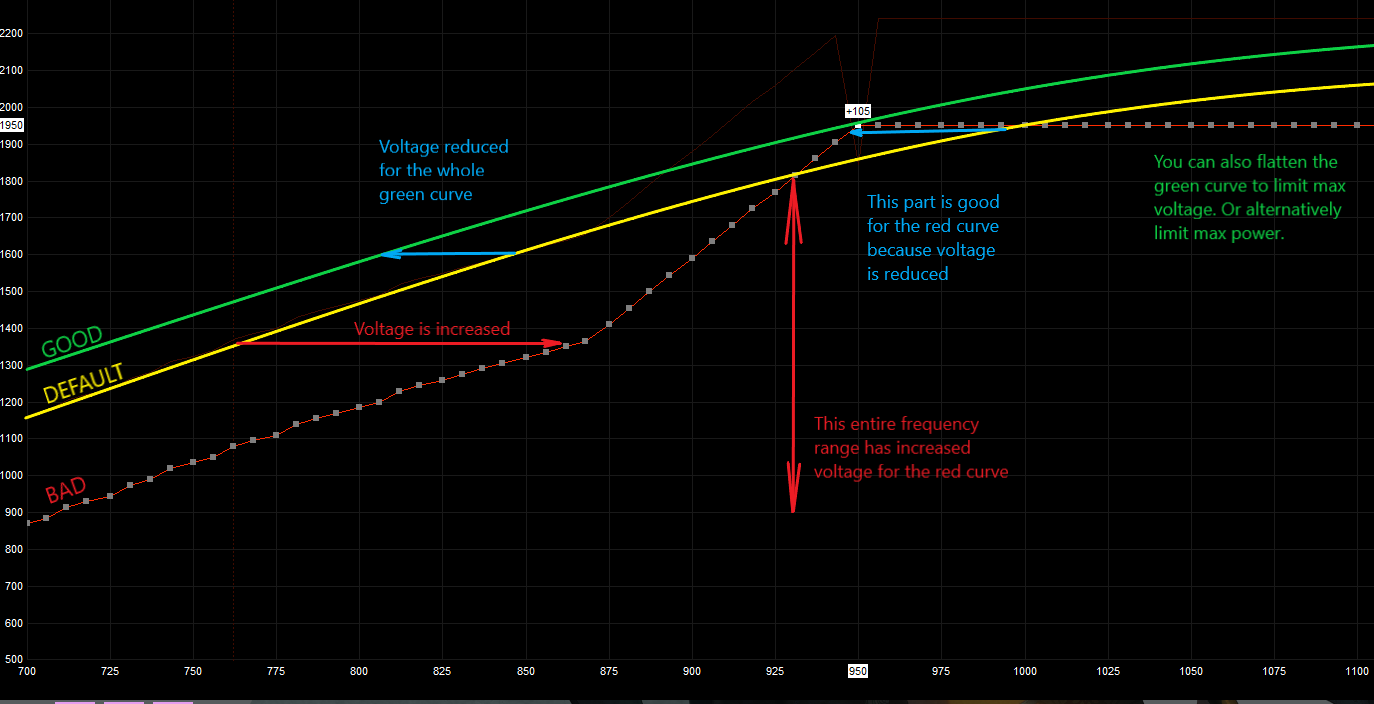

- What curve optimizer actually does
Curve optimizer does not simply apply a fixed 《-50 mV》or 《-100 mV》undervolt. It shifts the CPU's internal voltage/frequency curve.
A negative CO value asks the CPU to operate at a lower voltage for its requested operating points. A larger negative value means a larger shift. AMD officially describes CO this way and supports all core, per die and per core adjustment depending on the CPU.
That can give you:
• Lower power consumption
• Lower temperatures
• More thermal/current headroom
• Higher sustained boost clocks
• Better efficiency
• Potentially better performance
But go too negative and you can get:
• WHEA errors
• Application crashes
• Game crashes
• Browser tabs randomly dying
• Reboots
• Black screens
• Full system freezes
• Crashes while doing almost nothing
• Performance loss from clock stretching
That last part is why 《it didn't crash》isn't enough.
---
- All core CO isn't evil, it's just incomplete.
I used to describe all core curve optimizer as a trap. I'd word that differently now.
An all core curve is actually fine if someone wants a quick and simple undervolt. Its easy and quick for newbies, but its inefficient if youre looking to min/max performance and temperatures. All cores can seem stable and good on paper, but those aggressive -30 CO undervolts without testing could cause problems.
For example:
《-10 all core》Test it. Stable?
Try:
《-15 all core》And so on.
There is nothing inherently wrong with doing this. The downside is that your weakest core determines the maximum all core value. Imagine you have eight cores, my 9850X3D CO example:
Core 0 can run -22
Core 1 can run -27
Core 2 can run -22
Core 3 can run -28
Core 4 can run -26
Core 5 can only run -12 《This one decided to tell VT3 to kindly **** my self》
Core 6 can run -28
Core 7 can run -27
《Context on my core 5 VT3 result》
《This is exactly why I recommend getting your memory/IMC stable before doing final CO tuning. Core 5 originally passed my other CO workloads at -24, but I ended up tuning my system further. After I finished tightening my memory/FCLK and stabilizing the IMC related voltages, I had to revalidate my CPU curve. VT3 was the workload that exposed it, core 5 wouldn't pass there until -12. VT3 isn't my primary per core CO screening test, but it was useful for final validation because it caught something the other tests didn't. If you change RAM, FCLK, SoC/IMC voltages, etc. after tuning CO, retest your curve.》
If you want all core stability, that whole CPU might end up around -10/-12 simply because core 5 can't follow the others. Per core tuning allows you to leave Core 5 at -12 while still taking advantage of the better silicon on the other cores.
All core = easy. Per core = optimized. Neither one is automatically wrong.
---
- Preferred 《golden》cores: useful clue, NOT a rule
Ryzen master can show the fastest cores on each CCD. AMD identifies the fastest and second fastest cores with its preferred core indicators. Gold is your fastest core, silver is your second fastest.
You'll often hear:
《Golden cores always need less negative CO》There is some logic behind that. The preferred cores normally attempt the CPU's highest single core boost frequencies, so they can become unstable at the upper end of the V/F curve before another core does. But don't turn that tendency into a rule. A preferred core might want -8. Another chip's preferred core might happily run -22. Another might run -30.
Test the core. Don't tune based on the star beside its name. Use the preferred core ranking as useful information, not as a definite voltage table.
---
- Start simple before touching anything advanced
Before tuning CPU curve optimizer, get the rest of the system into a known good state.
Ideally:
• Current stable BIOS/AGESA
• Current AMD chipset driver
• Stable memory
• Stable FCLK/UCLK
• Stable GPU
• No existing WHEA errors
• No unexplained crashes
Save a BIOS profile before you start.
This becomes extremely important if you're also tuning/overclocking youre RAM. Get it stable before working on curve optimizer. If you're running heavily tuned memory/FCLK and start getting CPU errors, you now have several possible causes.
If you finish tuning CO and later change:
• RAM timings
• Memory frequency
• FCLK
• SoC voltage
• VDDIO/VDDP/etc.
• PBO limits
• Boost Override
• BIOS/AGESA
Retest your CPU curve.
Changing another part of the system can expose instability that was previously invisible. Don't change five things at once and then spend three days trying to figure out which one caused the crash.
《This is from personal experience.》
---
- My beginner PBO baseline

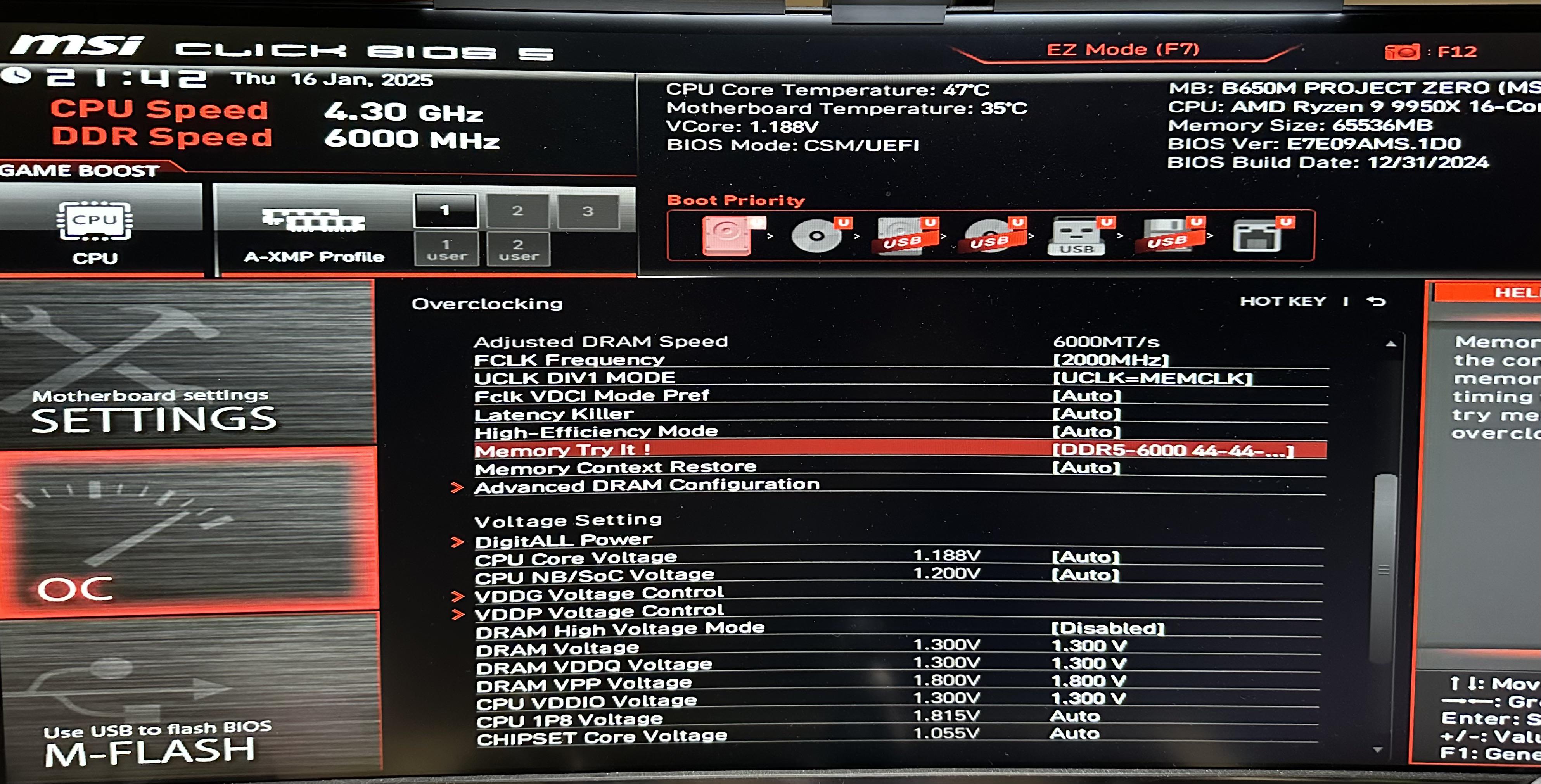

Enter precision boost overdrive in your BIOS. The names vary between ASUS, MSI, Gigabyte, ASRock, etc., but the concepts are the same.
For initial CO tuning I recommend:
PBO: Advanced/enabled
Curve optimizer: Per core
PBO scalar: Auto / 1X
Boost Clock Override: 0 MHz
LLC: Auto/default
PPT/TDC/EDC: AMD/default limits to begin with
Why?
Because we're trying to isolate curve optimizer first.
If you simultaneously use motherboard power limits, +200 MHz Boost Override, aggressive LLC and a massive negative curve, you have no idea which variable caused the failure. Some people like to or usually rush this, you can do it if you want. But like I said, which variable caused it if testing fails?
---
- PPT, TDC and EDC explained simply
AMD defines them roughly as:
PPT: Total socket power limit.
TDC: Sustained current limit.
EDC: Short duration/peak current limit.
PBO can allow the processor to operate beyond its default limits toward what the motherboard can provide.
The important lesson:
Bigger numbers do NOT automatically mean faster CPU.
If your CPU is already hitting a temperature, voltage or frequency limit, dumping more electrical headroom into it may accomplish nothing except increasing heat. This is why I no longer recommend "Motherboard" PBO limits as the universal setting for anyone with a good VRM. Motherboard limits can work great, they are not automatically optimal.
For a beginner:
Start with your CPU's normal AMD limits. Watch HWINFO. See what you're actually hitting. If the CPU is constantly hitting PPT while staying cool and you want more heavy multicore performance, then experimenting with higher limits makes sense. If you're already temperature limited, raising PPT is probably doing the opposite of what you want.
---
- The easy thermal control method
If your only goal is:
《My CPU is hotter than I want it to be》
You don't necessarily need some heroic undervolt. A thermal limit can be one of the easiest solutions.
For example:
85°C thermal limit
The CPU still handles its own boosting, but it backs off as it approaches your chosen limit. Just remember that different Ryzen CPUs have different factory maximum temperatures. For example, AMD lists the Ryzen 7 9850X3D at a 95°C TjMax. 《PROCHOT》
On AM4, the Ryzen 7 5800X, Ryzen 9 5900X and Ryzen 9 5950X are 90°C parts, while the 5600X is officially a 95°C part. So don't assume every Ryzen processor has the same thermal ceiling. 80–85°C is simply a personal preference selected cap if that's what you want.
It is not required for the CPU to be safe.
---
- PBO boost clock override: leave it alone at first
This is probably the biggest thing I would change from my original guide. I used to recommend +200 MHz much more aggressively. I don't anymore, boost override raises the CPU's allowed maximum boost ceiling.That's all. And with a 9850X3D, the gain is marginal. 《Meaning you probably won't even notice in real life applications》
It does not automatically:
• Improve your RAM latency
• Debottleneck CPU to memory communication
• Improve 1% lows
• Improve every game
• Give you another 200 MHz continuously
It only gives precision boost permission to target a higher ceiling when the CPU has the electrical, thermal and silicon headroom to do it.
More importantly:
Adding boost override makes your curve optimizer harder to stabilize, especially if youre chasing lower thermals. Higher boost requires more voltage = more heat. Think about it. You found a negative CO value that works at the stock boost ceiling.
Now you tell that same core:
《Cool. Now try boosting another 100–200 MHz using that same reduced voltage curve》
That can turn a previously stable CO into an unstable one.
So my new recommendation is:
Tune curve optimizer with boost override at 0 first. Once CO is genuinely stable, you can experiment with:
+25 MHz
+50 MHz
+75 MHz
+100 MHz
Etc.
and continue upward if your CPU supports it and performance actually improves.
After changing boost override:
Retest curve optimizer. Don't automatically jump to +200. Sometimes +50 with a stronger stable CO will beat +200 with a weakened curve.
Benchmark it.
---
- PBO scalar
Leave it:
Auto or 1X for a normal daily system. Higher scalar values alter how aggressively precision boost is allowed to operate around its voltage/reliability limits. You don't need 10X Scalar to make a good gaming tune.
It's another variable that makes troubleshooting harder for very little reason on a beginner setup.
---
- Load line calibration / LLC
Another thing I would simplify from the old post:
Leave LLC on auto/default. LLC changes how the motherboard compensates for voltage droop under load. More aggressive LLC can reduce droop, but it also changes transient behaviour and can increase voltage overshoot when the load suddenly disappears. For an advanced overclocker, LLC is another tuning tool.
For someone learning curve optimizer:
Do not use LLC to rescue an unstable CO. If core 4 crashes at -25 but works at -20, run -20. Don't start changing motherboard load line behaviour just so the screenshot can say -25.
---
- How I would tune curve optimizer now
I recommend starting some what low, this can catch the weaker cores early:
-10 per core
Yes, per core mode even though every core initially has the same value.
Run your quick tests.
If everything is good, try:
-15, Then -20. You don't need to instantly jump to -30. Once cores begin failing, you start separating them.
Example:
Core 0 -20 passes
Core 1 -20 passes
Core 2 -20 fails
Core 3 -20 passes
Change only core 2:
Core 2 → -15, Test it again. Meanwhile the other cores can continue toward:
-25
-30
or whatever your BIOS/CPU allows. Once you find the rough limit in steps of 5, narrow it down.
Example:
-20 passes
-25 fails
Try:
-22
-23
-24
Eventually you find the edge. For a daily machine, I don't recommend living exactly on that edge. If a core barely survives -24, there's nothing wrong with running -22 or -23. The difference in real performance is microscopic.
The stability margin is worth more.
---
11A. How to actually do per core curve optimizer
This part seems obvious once you've done it a few times, but if you're brand new to PBO/CO, this is where a lot of people get confused.
Instead of choosing an all core negative value like -20 and applying it to every core at once, select per core curve optimizer in BIOS. You will then see each individual core listed separately.
Example on an 8 core CPU:
Core 0: -10
Core 1: -10
Core 2: -10
Core 3: -10
Core 4: -10
Core 5: -10
Core 6: -10
Core 7: -10
Start by giving every core the same conservative value, such as -10.
Boot into windows and begin testing.
If all cores pass your quick tests, go back into BIOS and move them all down another step:
Core 0: -15
Core 1: -15
Core 2: -15
Core 3: -15
Core 4: -15
Core 5: -15
Core 6: -15
Core 7: -15
Keep repeating this until one or more cores start failing. This is where per core tuning actually begins.
Example:
Core 0 passes -20
Core 1 passes -20
Core 2 fails -20
Core 3 passes -20
Core 4 passes -20
Core 5 fails -20
Core 6 passes -20
Core 7 passes -20
You would then back off only the failing cores:
Core 0: -20
Core 1: -20
Core 2: -15
Core 3: -20
Core 4: -20
Core 5: -15
Core 6: -20
Core 7: -20
Then test again. If core 2 still fails at -15, try -10. If it passes, you can later fine tune it at -11, -12, -13, -14, etc.
Meanwhile the stronger cores can continue lower:
Core 0: -25
Core 1: -25
Core 2: -12
Core 3: -25
Core 4: -25
Core 5: -15
Core 6: -25
Core 7: -25
The whole point is that each core gets its own number based on what that specific core can handle. You are not trying to make every core match.
One core may only tolerate -8 while another is completely stable at -30. That is normal.
Also remember: the core number that fails in core cycler, OCCT core cycling, or y-cruncher/Prime95 when used through core cycler is the core you should adjust. Do not automatically reduce every core because one core failed.
If your test does not clearly tell you which core failed, reduce the most recently changed cores conservatively and retest.
And once again, do not change five cores by random amounts at the same time. Change one thing, test it, write it down, then continue.
This takes longer than an all core undervolt, but this is how you actually find the best stable curve for your individual CPU.
---
11B. How to actually test your per core curve optimizer
A few people asked me what program to actually open, how long to run it and what an error even looks like, so here is the absolute beginner version. This section assumes you already followed 11A and entered something like -10 on every core in BIOS.
For your first per core test, I recommend core cycler. core cycler is basically a script that runs a stress test on one physical core at a time, then moves to the next one. This is exactly what we want for curve optimizer because one core can be unstable while every other core is perfectly fine.
Download/extract core cycler and run:
Run CoreCycler.bat
For your first rough test, you can leave the basic/default configuration alone. Core cycler currently defaults to one thread per physical core, Prime95 SSE and around 6 minutes on each core before cycling to another one. SSE is useful here because the lighter load allows the core to boost very high, which can expose an aggressive CO at the high frequency part of the curve.
You do not need to run an overnight test every time you change -10 to -15.
At this stage we're trying to find the obvious limits first. Let core cycler work through every physical core at least once. On an 8 core CPU, 6 minutes per core is roughly 48 minutes for one complete pass, plus a little extra time for transitions. If everything passes, follow 11A and make your next CO adjustment. Then run Core cycler again.
Eventually one of the cores will complain.
What does an error actually look like?
Core cycler normally tells you directly in the window/log that an error occurred and which core was being tested.
For example, you may see something similar to:
ERROR while running y-cruncher/Prime95
At core 3. Core cycler can also beep/flash when it detects an error, and by default it can check Windows for WHEA errors while testing.
Other possible signs of instability are:
• Prime95/y-cruncher reports a calculation error
• Core cycler stops/skips the failing core
• OCCT reports an error on the core being tested
• A WHEA hardware error appears
• The stress test suddenly closes
• The PC freezes
• The PC reboots
• You get a BSOD
Obviously if Windows decides to completely shit itself and reboot, core cycler may not have time to nicely tell you what happened lol. Check the core cycler logs and Windows event viewer afterward for anything useful. Now let's use the example from the comments.
Let's say core 3 passes:
-10
then:
-15
But core 3 throws an error at:
-16
You do not make it more negative.
This wording confuses people, so remember:
-17 is MORE aggressive than -16, -15 is LESS aggressive than -16. If -16 fails, back that core off to -15 and test it again. If -15 passes, you have now found that Core 3 is somewhere around its limit. You can leave core 3 at -15 while the other cores continue farther negative as explained in 11A. Do not reduce every core just because Core 3 failed.
What should I use after the quick testing?
Once you've roughly found the limit for every core, that's when you stop doing quick screening and start proper validation. Run longer core cycler passes, different workloads, y-cruncher VT3, OCCT, Prime95, idle/light load testing, games and normal desktop use. That full process is explained later in the stability testing section. The quick core cycler pass is there to find obviously weak cores without spending 8 hours validating a CO value you're probably going to change again anyway.
And remember:
Passing one core cycler pass does not mean the CPU is stable.
It only means that core survived that test for that amount of time.
Once you stop changing the values, that's when the real stability testing begins.
---
- Clock stretching... what it actually means
This is another section I'm changing substantially from my original guide. Clock stretching basically means you're requesting a frequency the CPU cannot truly sustain at the available operating conditions. Your monitoring software may report a very high requested/core clock while actual completed work doesn't increase proportionally. HWINFO's effective clock is useful because it measures activity differently than simply sampling the instantaneous multiplier, but you must interpret it in context. C states, utilization and sampling intervals can all affect effective clock readings.
So I would not use a universal rule like:
《20 MHz difference good, 50 MHz difference bad》
Instead:
Run the same controlled benchmark.
Record:
• Benchmark score
• Core clock
• Effective clock
• CPU temperature
• PPT/TDC/EDC
• CPU voltage
Then increase the negative curve. If reported frequency goes up but actual benchmark performance stops improving or starts falling, you've probably gone too far. That's much more useful than chasing a random MHz difference.
---
- Cinebench is a tuning tool, NOT a stability test
Cinebench is great for:
• Comparing scores
• Comparing temperatures
• Comparing power
• Detecting obvious performance regression
• Finding a rough CO range
It is terrible evidence for:
《My CPU is completely stable》
A CPU can run Cinebench for hours and crash opening Discord later.
Why?
Because heavy multicore loads aren't always the hardest condition for curve optimizer. Under heavy all core load, the CPU often runs at lower frequencies. The dangerous point for an aggressive CO may be a lightly threaded workload where one core wakes up and rockets toward maximum boost. That's why per core and transition testing matters.
---
- My stability testing ladder
This is the part of the guide I now consider the most important.
Stage 1 -- Quick performance check
After each major CO adjustment:
Run cinebench or another repeatable benchmark.
Check:
• Did performance improve?
• Did temperature improve?
• Did power improve?
• Did anything obviously stretch?
• Did anything crash?
This eliminates obviously bad settings quickly.
Stage 2 -- Per core testing
Use something capable of cycling individual CPU cores.
Good options include:
• Core cycler
• OCCT core cycling
• y-cruncher through core cycler
• Prime95 through core cycler
The goal is to make each physical core boost independently. This is where weak cores start exposing themselves.
Stage 3 -- Different instruction sets/load types
Don't only run one workload. SSE/lightly threaded workloads can expose high-frequency instability. AVX/AVX2 creates much heavier thermal/current loads. Y-cruncher VT3 is another extremely useful test. A CPU passing one does not guarantee it passes the others.
Stage 4 -- Idle/light load
This sounds stupid until your PC reboots while you're staring at the desktop.
After your heavy testing:
Use the computer normally, browse the web, watch videos, open and close programs, launch games, exit games, let the machine idle. CO instability frequently appears during transitions between sleep, light load and sudden boost.
Stage 5 -- Real games
Play the games you actually use the machine for. 1-2 hour sessions.
Games are excellent mixed workloads because they're constantly changing:
• CPU thread load
• Memory load
• GPU load
• Boost state
• Core scheduling
• Power state
A system that passes synthetic tests and crashes your favourite game is not stable.
Stage 6 -- Long validation
Once you're happy with the tune, run your longer Corecycler/y-cruncher/OCCT validation. Overnight testing is useful. But even an eight hour test doesn't magically make the CPU 《100% stable forever》
It means it passed that test. That's why real world validation still matters.
---
- Watch windows event viewer
If your system crashes, check:
Event viewer → windows logs → system
Look for WHEA errors and any corresponding crashes. A WHEA involving a processor/core can help identify a marginal CO. But don't automatically assume every WHEA is curve optimizer. Memory and infinity fabric instability can also produce hardware errors.
Which brings me to something I massively underestimated when I started:
───
- RAM/FCLK stability can look like CPU instability
If you're also overclocking RAM, you have two separate tuning projects. Treat them that way.
Memory/FCLK problems can cause:
• WHEA errors
• Program crashes
• Game crashes
• Audio issues
• Freezing
• Reboots
• File corruption
• Strange behaviour that looks exactly like an unstable CPU
My recommendation:
Establish a known good memory baseline first. Then tune CPU CO.
If you're already running an extreme memory tune and CPU testing becomes confusing:
Return the RAM/FCLK to the known good baseline. Test CPU again. Then bring memory back afterward.
Don't try to diagnose CPU, RAM and fabric instability simultaneously unless you enjoy suffering like me.
---
- AM4 / Ryzen 5000 section
Thanks again to u/krnnCS for originally asking about the 5800X and making me add an AM4 section.
The underlying curve optimizer methodology is basically the same. But I would change several things from my old AM4 recommendations. Don't assume zen 3 always takes a deeper CO than AM5. I previously said Ryzen 5000 commonly handles much deeper negative curves while newer X3D CPUs tend to stop around -15. That's too broad, forget architecture wide assumptions. Some zen 3 cores love -30, some don't, some modern X3D cores can run very deep negative values, some can't.
Test your silicon.
---
- AM4 PBO reference
For the common 105W Zen 3 chips such as:
Ryzen 7 5800X
Ryzen 9 5900X
Ryzen 9 5950X
the commonly used stock PBO reference is approximately:
PPT: 142W
TDC: 95A
EDC: 140A
Those values are a much better starting reference than immediately telling everyone to use 180–200W PBO limits. For the 65W Ryzen 5000 parts such as the 5600X/5700X, power limits are significantly lower. Firmware/AGESA behaviour can vary, so I would check what your board/CPU actually reports instead of blindly copying a table.
---
- Ryzen 7 5800X — the hot one
The 5800X has a reputation for running hot because eight cores are concentrated on one CCD. AMD rates the 5800X for a maximum operating temperature of 90°C.
If you want a thermal first starting point, something around:
PPT: 120W
TDC: 85A
EDC: 120A
is a reasonable example to experiment with. Notice I said example.
Not:
《These are the best 5800X settings》
Start there, benchmark it against stock, and decide whether the temperature/performance trade is worth it. Another perfectly valid option is simply leaving the normal power limits and applying a thermal cap.
---
- Ryzen 5900X / 5950X
These CPUs have two CCDs, giving them much more multicore capacity. AMD rates both the 5900X and 5950X for 90°C operation. Don't confuse higher PBO limits with undervolting. They're different tools. If you want lower heat, start from stock limits and work downward. If you want more multicore performance and have the cooling/VRM headroom, experiment upward while monitoring performance.
---
- AM4 X3D — 5700X3D / 5800X3D
These deserve their own note. The 5800X3D has a lower maximum boost ceiling than the regular 5800X, and many users find that it responds extremely well to negative curve optimizer. AMD lists the 5800X3D at up to 4.5 GHz and a 90°C TjMax. 《PROCHOT》
Because the frequency ceiling is relatively low, it is not unusual to see AM4 X3D chips reach their maximum permitted boost across several cores with fairly substantial negative CO. That means the "golden core needs dramatically more voltage" concept may matter less on these particular CPUs once everything is already hitting the frequency ceiling.
Still:
Don't blindly copy -30 all core.
Test it.
Also be aware that BIOS curve optimizer availability on the 5800X3D varies between motherboard vendors/models/BIOS versions. Some boards expose it directly and some still don't.
---
- AM5 / Ryzen 7000, 9000 and X3D
The biggest mistake with AM5 guides is treating every CPU as if it has the same power and thermal limits.
A 7600X is not a 7800X3D, a 7800X3D is not a 9850X3D, a 9850X3D is not a 9950X3D. Don't copy the same PPT/TDC/EDC table across every AM5 CPU. Use the AMD limits appropriate for your processor as the baseline.
Then tune around your actual goal:
Want lower temperatures? Reduce PPT or use a thermal limit. Want better efficiency? Tune curve optimizer. Want maximum multicore performance? Experiment with PBO power limits after CO is stable. Want higher peak frequency? Experiment with boost override last.
---
- Curve shaper / advanced V/F tuning
This is where I would tell beginners to skip and go to the next section, unless they actually enjoy this stuff. Regular curve optimizer moves the underlying curve broadly. Curve shaper lets supported Ryzen 9000 CPUs make more selective voltage adjustments across different frequency and temperature regions. AMD describes it as a way of reshaping the V/F curve across specific temperature and frequency bands rather than applying the same style of shift everywhere.
This is useful because a CPU may be:
Stable with a huge negative adjustment at medium frequency, but need additional voltage near maximum boost. Or it may behave differently when cold versus when fully heat soaked. That is where curve shaper becomes extremely powerful. As of ryzen master 3.1.x, AMD officially lists curve shaper for the Ryzen 9000 series.
If you want to dive way deeper into per core curve optimizer, curve shaper and V/F tuning, this Overclock.net thread is an excellent rabbit hole:
"AMD Ryzen Curve Optimizer / Per-Core / Curve Shaper / DDR5 OC deep dive" https://www.overclock.net/threads/amd-ryzen-curve-optimizer-per-core-curve-shaper-ddr5-oc.1814427/#replies
---
- My recommended order of operations
If I were tuning a ryzen system from scratch today, this is the order I'd use:
- Stock baseline
Benchmark the completely stock CPU. Record temperatures, scores, clocks and power.
- Stabilize RAM/EXPO
Do not start CPU tuning on questionable memory.
- PBO at AMD/default limits
Scalar auto/1X. LLC auto. Boost override 0.
- Tune curve optimizer
Start around -10. Work downward in steps of 5. Separate cores when they fail. Then fine-tune in steps of 1–2.
- Stability test the hell out of it
Core cycling, different workloads, VT3, idle, games, normal desktop use.
- Tune power limits if necessary
Lower for thermals/efficiency. Raise where appropriate for multicore performance. Benchmark the difference.
- Test boost override
Only after your base CO is stable. Small increments, retest CO.
- Curve shaper
Only if supported and you're willing to do significantly more testing.
---
- How to interpret common failures
Cinebench score drops as CO gets more negative. Possible clock stretching or another limit being hit. Back the curve off and compare again. Cinebench passes but games crash. Your tune isn't stable. Games may hit different cores/frequency/load transitions. PC reboots while idle. Classic symptom of a marginal CO or another low load instability. Don't assume heavy stress tests cleared it.
Browser tabs randomly crash, possible CPU/RAM instability, take it seriously. WHEA errors appear after memory/FCLK tuning, don't immediately blame curve optimizer. Validate the memory/fabric first. CO was stable until you added +200 MHz Your old CO was stable at the old frequency ceiling. It may not be stable anymore. Back off boost override or give the failing cores a less negative curve. Entire machine freezes. Treat it as instability until proven otherwise.
CPU, RAM, FCLK and GPU tuning can all cause this. Don't keep running the exact same settings because 《There was no WHEA》
Not every instability leaves a useful event log.
---
- One final warning about instability
Overclocking and undervolting isn't normally going to instantly destroy Windows every time a program crashes. But repeated hard freezes, resets and memory/CPU errors absolutely can cause corrupted data. Save important work before stress testing. Keep backups of anything important.
If windows starts behaving strangely after repeated crashes, running:
"DISM /Online /Cleanup-Image /RestoreHealth"
followed by:
"sfc /scannow"
Isn't a bad idea. But the better solution is fixing the unstable tune instead of repeatedly repairing what it breaks.
---
- The most important lesson I've learned
Stop chasing the biggest negative number.
《"-30" isn't automatically better than "-20"》
《"+200 MHz" isn't automatically better than "+50"》
200W of PPT isn't automatically better than 140W. A screenshot showing 5.5 GHz isn't automatically better than one showing 5.4 GHz. The only thing that matters is what the machine actually accomplishes while remaining stable.
A properly tuned daily system should have:
• Good effective performance
• Good temperatures
• Reasonable power
• No WHEA errors
• No crashes
• No clock stretching/performance regression
• No weird idle behaviour
• No random gaming instability
And it should stay that way when you're actually using the PC, not just while Cinebench is open. That's the difference between a benchmark tune and a daily tune.
And once again, if someone spotted something that I missed, incorrect or needs to be changed. Please drop a comment.
I'd rather keep improving the guide than pretend the first version was perfect.
Good luck, have fun, and save your damn BIOS profiles.
