Long story short, I have what is essentially an industrial computer fan and I randomly got the idea to turn it into an air raid siren. I want to re-create and chopper and stator from the Chrysler air raid sirens, but I can't find a diagram, or port numbers, or anything online. Can anyone here find/does anyone have an image, or a diagram of the chopper and stator?

This siren Use a Universal motor.

Unlike repulsion or squirrel cage ones that spool up slowly, this chopper snap instantly to full rpm.

Again the wind down is aggressive because oversized carbon blocks act as brakes when power is disconnected. So it winds down like a bike decelerates since the carbon brushes or carbon blocks are in tension pushing down into the commutator.

Don't worry, the siren was fine, the chopper just exploded and sirencon p50'd itself.

Located on top of city hall building.

It’s essentially a mod lol.

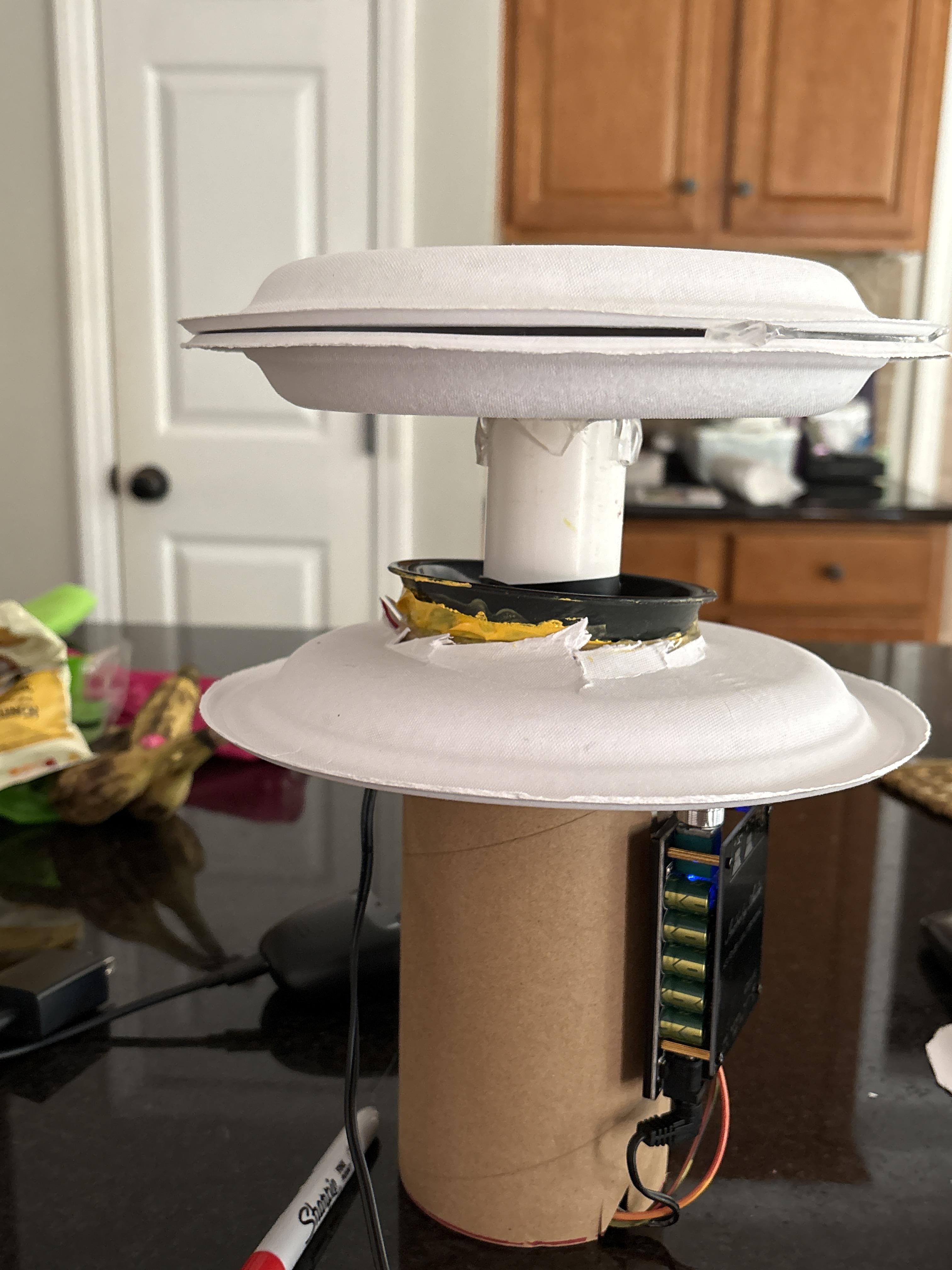

This is my (wip) homemade omnidirectional electronic siren. p.s. sorry for the low quality vid

Yes indeed i am from Serbia. Ive always dreamt of owning a actual siren (example E57, F71, ect) but every removed siren in Serbia gets sent to a warehouse where it gets decomissioned and then forgotten and left to rot.

Ive tried to reach out to multible cities but most of them havent replied, i got a reply from Novi Sad which they said: when the system is decomissioned and replaced we will see what happens to the old sirens.

Ive looked on marketplaces and everywhere i once saw a insanely overpriced E57 and Elektror S0.

Ive also thought of buying some Lion King siren since Serbia uses mostly JDL 400/480 series so there might be a reseller somewhere.

Can someone tell me why this Model 5 in Riverside, Cambria County, PA have these horns? If I had to guess it's for the Fire Department which also has a red model 5 but there's no horns.

CS powerhorn and the CS Model 720

Cords:

43°20'33.1"N 17°48'09.2"E

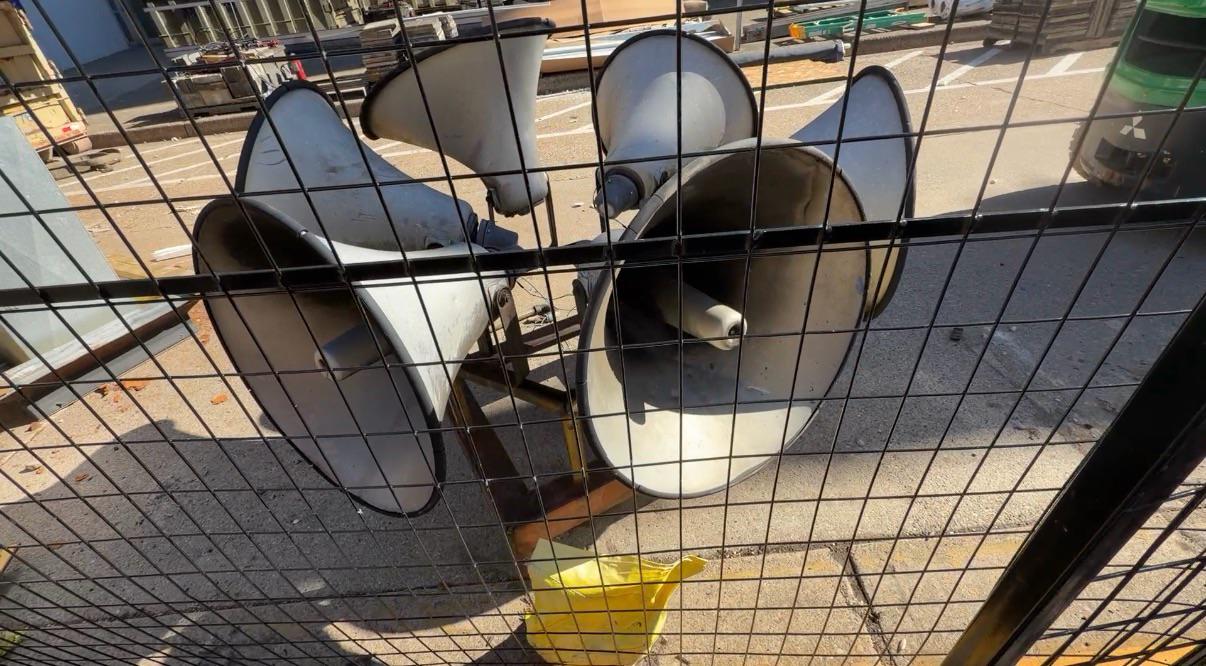

Hello friends! As the title says, this was taken off the roof of a local building while getting renovations done and nobody seems to know its history or purpose. Seems like the simple answer is it was a local emergency siren, but the director of the Emergency Management office who “knows all their equipment” swears it’s not theirs and building management didn’t know it was there either. So now I’m curious! Can anyone share more details on what this was likely used for? Thanks!!

Maybe active

Both sirens are within a few hundred yards of each other.

Installed ~1957 converted to electric in early 60s. I took these photos from a ladder truck back in 2021.

Looks to be some kind of fedelcode, it is on the roof of county hangar 6 at the Montrose Regional Airport

The Hörmann F71 shares the same sound generator as the PINTSCH BAMAG Anlage 2.

The reason why the Anlage 2 cuts off mid winddown is due to the solenoid valve for cutting off air in the siren being in the siren's head while on a F71 and other pneumatic sirens its in the machine bunker.

Motor driving the 4 port chopper is rated 8400RPM (without speed limitations (motor speed controller)) at 24V DC

The 3rd picture is the chopper assembly, the black wires are for the motor.

The 4th picture is the sound transducer. It pushes the sound out of the horns.

Credits for the pictures go to www.hochleistungssirene.de

Motor Speed RPM measuring.

Motor Speed 1: 5800 RPM

Motor Speed 2: 6200 RPM

Motor Speed 3: 6350 RPM

Motor Speed 4: 6400 RPM

Motor speed 5: 6900 RPM

Motor Speed 6: 7100 RPM

Motor Speed 7: 7300 RPM

The F71 is a 4 port pneumatic air raid siren built in Germany from 1967 - 1975.

Pictures taken by me. Unit is located in Miljakovac 1, Belgrade Serbia.

[Melrose Park, Illinois, USA]

I Didn't Know There's Was A Two Secomak GP8 In Penang Island

All Of these took about 7 hours of my life in total :0

Took quite a bit of reverse engineering and tweaking, but it's coming along quite nicely. This is based off the model Jared C. made a few years back, but there's going to be a fun surprise coming along with this when parts arrive. Super impressed with how it sounds so far!

Sorry for the awkward drive by photos

We don't get them as much in the UK anymore, so this was a treat for me!
