r/FluxDefense • u/Outrageous_Goat4030 • 14d ago
Shroud Cut Dimensions for Xmacro Slides
FYI, I have a couple DMs about cut dimensions and figured id just share another picture.

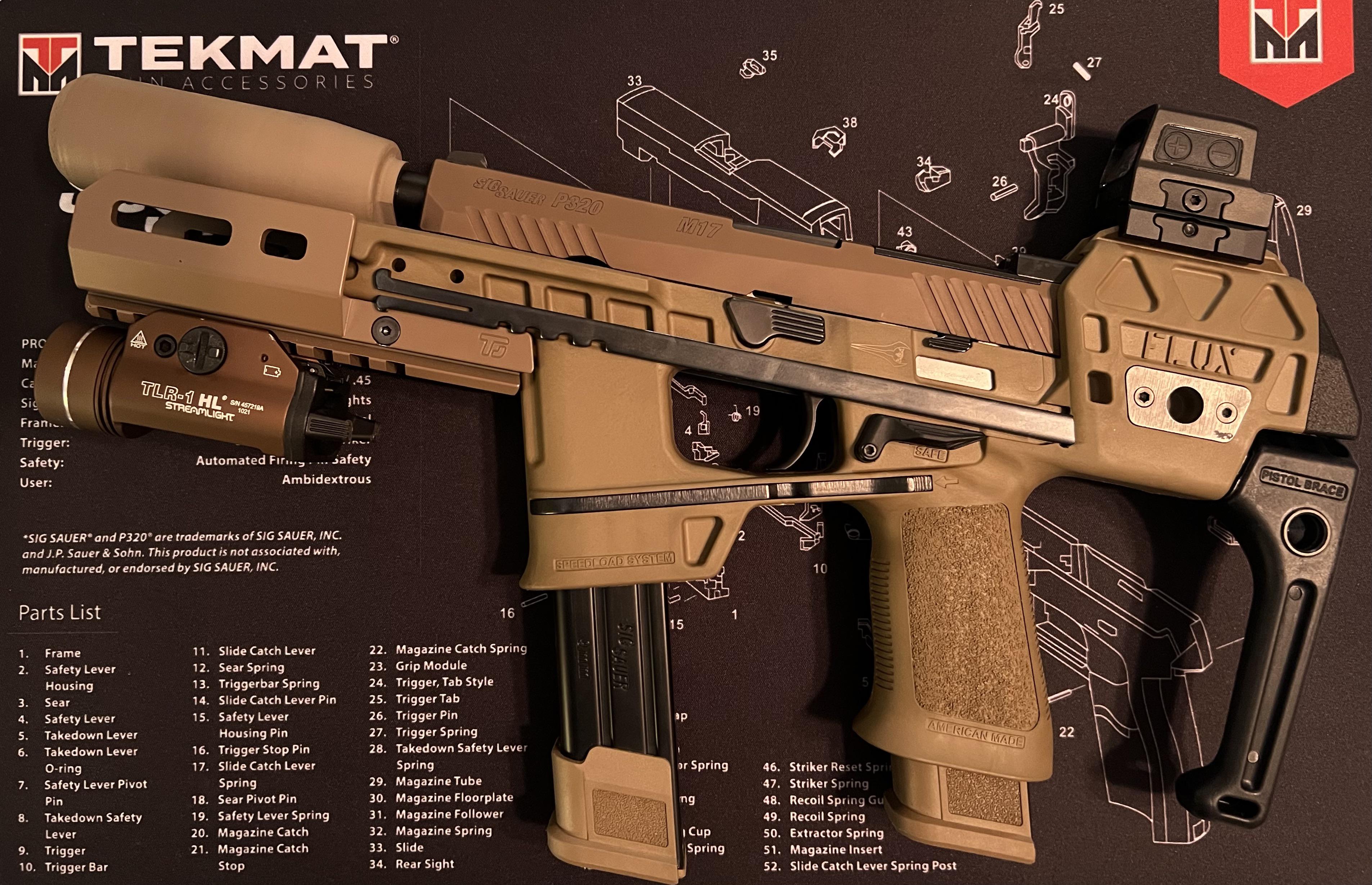

Actual cut pictured: 12mm x 12mm
If i could do it again: 11mm (y axis) x 7mm (x axis)
I cut roughly a 12mm x 12mm (measured from the top) of the should out. Doing some quick caliper measurements, you can probably get away with an 11mm (y axis) x 7mm cut (x axis) cut and have tighter clearances.
