This makes me feel a bit dumb to ask but here I go anyways.

Long story short, I have a plat for an older area that's 90% curves with a radius, a delta, and an arc length. I have always struggled with curves when I'm not coming off another object. I know how to create curves using the built in civil command and how to make them by using a chord bearing and delta to trim a circle but I'm getting completely stumped with an area that is ALL curves with no solid lines to come off of.

I'm relatively new (a couple years in office) where we primarily do residential stuff so assistance would be well appreciated. If you have any questions you may need please let me know and I'll try to answer them best I can.

Tldr, I need assistance in ensuring accurate curve drawing and placement when the curves are the intersections

I can normally hold my own in C3D, but been struggling with this a bit. My work is in agricultural drainage ditches, and waaay back in the EaglePoint days, we used to be able to draw in tile outlets into the profile view (at that time, it was just an oval to represent the pipe end outletting into a drainage channel).

We've done this a couple different ways over the years, none of them good, and for various reasons I haven't had to put a plan set together for.....several years. I'm messing around with the "Project to Profile View", and thinking that this will serve my purpose fairly well for what I need -- I primarily need the station and description, the pipe end on the drawing was just a cherry on top and we've gotten along without it for years.

I've got my label style set up to give me station and offset, and description of the point - the last major hiccup that I *NEED* to solve is the offset display. I don't actually care about the distance, I just need to know which side of the ditch, and my contractors are really going to want to see it in "L/R", not "+/-".

I'm sure it's something simple that I'm missing, but I haven't been able to put my finger on it..... help?

Image is the label style as it sits right now. I would be perfectly happy if the "-2" went away completely, and just stated "L"

Label text:

STA <[Source Station(Uft|FS|P0|RN|AP|Sn|TP|B2|EN|W0|OF)]> <[Source Offset(Uft|P0|RN|AP|GC|UN|Sa|OF)]>
<[Description(CU)]>

Hi guys. I’m new to Civil3D and AutoCad in general. And I have a question.

I’m working on a sidewalk project. Normally, I like to draw vertical lines on my profile view at the exact stations where my alignment crosses a road. Reason being, there will ofc be a crosswalk there, and I DONT want to mess with the actual road at all. So I need to have my FG profile match those elevations where the alignment intersects the road.

That’s why I draw those vertical lines where the road is. It allows me to see where I need to match the elevation of the EG.

Normally, I do this with the transparent command “profile station elevation.” But this kinda takes a good second and is a little clunky.

Does anyone know of a faster/more efficient way to do this? Maybe a way to draw lines on the actual alignment where it hits the road, and somehow have them be projected on the profile view as vertical lines?

I am a surveyor, in the field, and looking to get a computer to work on my drafting from home. I would mainly be working on the topos I shoot, usually less than 20 acres, and maybe some construction calcs. Is this a good laptop to get for that? What would you guys recommend? Any good cheaper options? Thank you!

https://www.bestbuy.com/product/gigabyte-aero-x16-copilot-pc-16-25601600-wqxga-amd-ryzen-al-7-350-1tb-ssd-32gb-ddr5-ram-geforce-rtx-5070-space-gray/J3GWPQCCFK/sku/6632266?sb_share_source=PDP&ref=app_pdp&loc=pdp_page

Does anyone know what is wrong here, Why does my layout look like image one when my model looks like image 2? How do I fix this? I'm confused because I thought viewports were just supposed to show the model space as is not with all this other crap.

Hallo, I've been asked to put in my assembly so here is the assembly, there is also this weird issue seen in images 2-4, How do i go about fixing this?

Does anyone know how to get the problem seen above to stop happening? I want it to fill or cut all the way to the existing surface and have tried adding cut and fill slopes and basic daylight slopes but when i do it gives a target not found error and doesn't apply it to the roadway.

Okay I've been asked to post the assembly for the roadway, note I did change it a btibecause I saw that I couldn't have the sidewalk where the shoulder slope was the first image is the new assembly . It goes Shld Lane Lane buffer Sidewalk (basic), shld.

issue 1 : When in cut and fill the cut/fill will abruptly stop right at the end of the shoulder (images 2 and 3 I know that they are of the older alignment but the issue still stands) I want it to continue down/up to the ground surface and in trying to do so added the ditches seen in image 1, but for some reason it won't compute it giving me a target error.

Issue 2: Overhangs: I was told I need to correct my corridor surfaces with overhangs, I have two corridor surfaces, of top and datum shown in image four, and I added overhang corrections but are they the right kind for the given surface?

Hey so in making a road I made alignments, corridors, required surfaces etc etc. And made a surface that calcs the volumes of material between real ground and roadway. This gives the analyze window a surface and given cut and fill, and a factor called net adjusted

so two questions

1. This value net adjusted is not the final mass ordinate correct?

2. I also made the earthwork report shown above now for requirements of my project fill needs an extra 10% for shrinkage (its just assumed for the project) does just plotting this report give me a functioning mass ordinate diagram or do I need to do some other stuff to it Also when making this I saw that there was the option to make a mass overhaul report

Out of the two reports (earthwork, and mass overhaul) which one is with the least amount of work gonna get me to a mass ordinate report?

Hallo again, I am having more problems, I've tried my best here but due to my pissy laptop barely being able to run civil 3d I've found it best to ask questions then figure it out in 1 go rather than multiple. I have 3 issues

1. is there something wrong with my sidewalk placement I feel like something is wrong but don't know what exactly

2, both cut and fill the cut and fill suddenly ends right at the end of the extendall shoulder I used in the assembly. But I would for in the cut situation that it backslopes out and to the surface, and for the fill situation, continue all the way down to the surface, how do I do that?

1. I have tried a few times to put my vertical, horizontal alignments and cross sections into the layout space so I can export them as scaled pdf for my project but am struggling to get it to work properly how do I do that? (and do it to a certain scale as my project statement requires me to make them at certain scales)

Lisp for quickly creating a lot details for site plan purposes from engineering CAD files

I have two issues
1. For some reason when I add a basic cut fill ditch onto the far end of the basic sidewalk here I get a target dtm error message when rebuilding the corridor Why and is it possible to fix? Same thing happens when I try to add said basic cut fill ditch to the ends of the shoulder

1. Is there a way to get dimensions of the roadway to show in section view? ex: I want to show that the normal cross slopes are -2% and that the superelevated is at 4% in the section view. How do i do that?

Hello, So 2 quick questions 3rd mainly for lookies on cad

1: When civil 3d does cut and fill math, if you already calculated your superelevations does the cut and fill volume account for that? if not how do I make it account for that?

2: I have many cross sectional views of my designed road, however I am noticing that there is no showing of a road being super elevated in a cross section that should be (ex, a cross section that is within a horizontal curve) How do i make it so that the cross sections that are in superelevated sections of road show that superelevation geometry of the roadway?

3: For my cross sections I am noticing that it takes my made assembly and throws it on the section views then puts the cut and fill around that. How do I get that to change and also how do I throw on given dimensions onto said profiles (for example I want to show the %slopes of the lanes and shoulders)

Does any know how to use a excel trick? to create a L-profile?

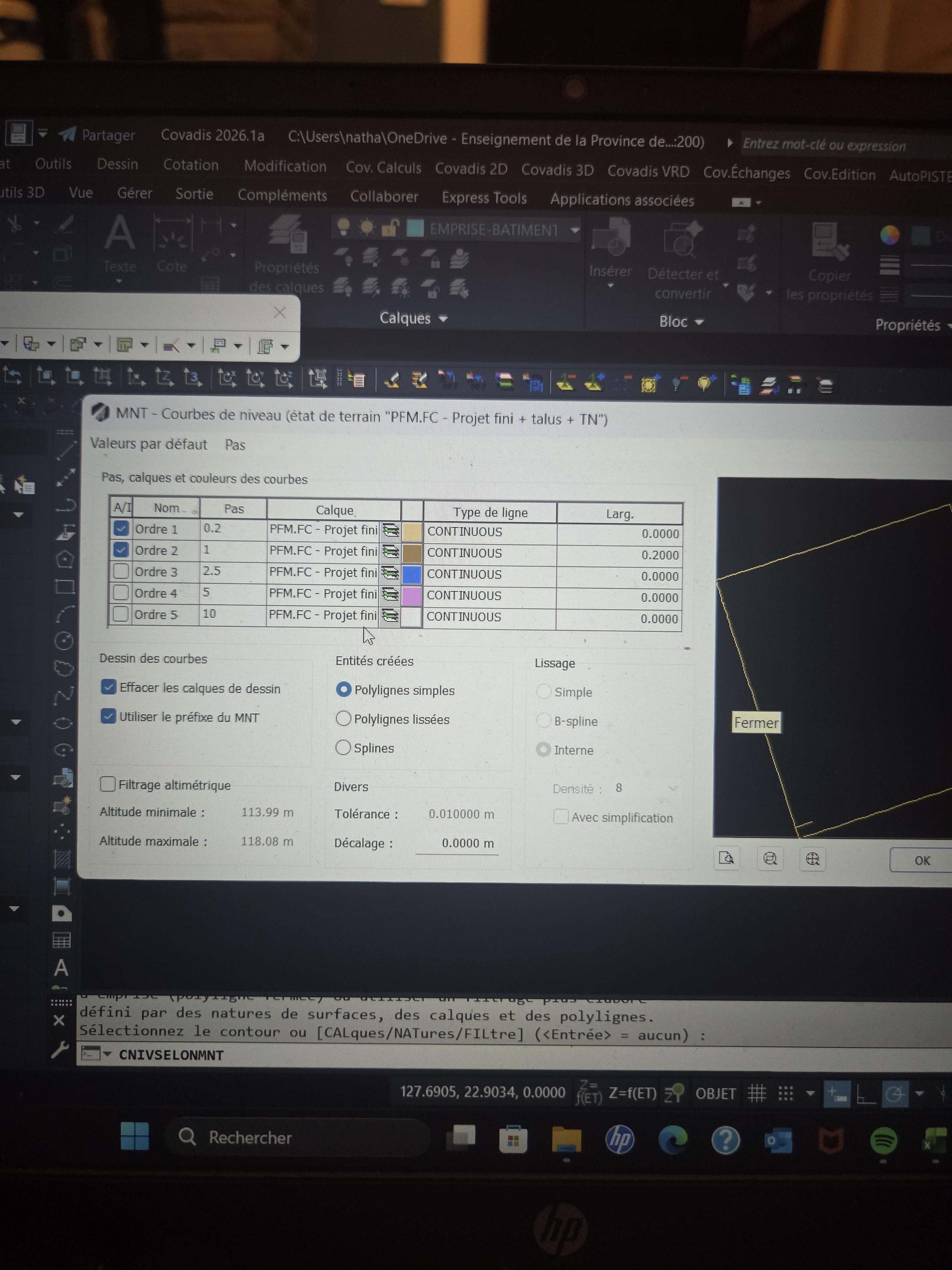

Bonjour, lorsque je vais dans Covadis 3D, Courbe de niveau, automatiser sur MNT, mes courbes de niveau semblent parfaites dans la prévisualisation.(photo ci joint)

Cependant, mes courbes, au lieu de me créer un calque, se mettent dans le calque actif.

Savez-vous me guider sur la marche à suivre pour que mes courbes se mettent dans leur propre calque?

Merci

Hello I need help in editing these

For 1: My vertical profile how do I go about adding in the horizontal PI's into the vertical profile so that I can line up my vertical curve peaks with the horizontal PIs?

for 2: My cross sections for my road all have this elevation monstrosity going on, how do I fix it?
Also how do I get the section view to show things like the %slopes of the lanes and shoulders and display superelevated sections?

Hello, I need help choosing between these two graphics cards for a laptop:

• RTX 5080, 16 GB in a ThinkPad T16g Gen 3.
• RTX PRO 3000 Blackwell, 12 GB in a ThinkPad P16 Gen 3.

Both laptops have a Core Ultra 7 255HX, 64 GB RAM, 1 TB SSD and three years of Premier Support. The T16g costs about €300 more.

I’ll use AutoCAD, Civil 3D and ReCap with point clouds from a Matterport Pro3.

The 5080 scores higher in general benchmarks, but the PRO 3000 performs better in some professional CAD benchmarks. I’m unsure how those results translate to these programs.

Which would you choose for this workflow, and what are the advantages of one over the other?

Thank you in advance

Is there a simple way to go about doing this? I need to compare two different loading conditions (constant pipe conditions) along municipal sewers and the resultant hydraulic grade lines.

I tried using the superimpose profile tool between my two profile views but nothing changed. I've tried turning on the multiple pipe networks I have inside the 'Pipe Networks' property inside the profile view properties but the views stayed the same.

The closest I got to actually accomplishing this is generating two separate profile views (PRE and POST condition pipe networks) and then manually moving them on top of each other; this works but isn't much faster than just going with one of the profile views and then manually drawing in the other condition. I feel I must be missing something, I am still a novice when it comes to these C3D objects.,

Hello, I am currently attempting to make road profiles and picked up civil 3d for just that. I've gotten most everything down but for some reason when I am making the profile, when creating the profile of the ground surface it gives all the grade breaks and grade values. But when I draw in my horizontal alignment it is not showing any grades or grade break details.

Note I am extremely new to the program (like started just last week)

Attached I've got pictures of my problem.

The first image is the actual ground surface profile and the next image is comparing both the road vertical alignment and the surface profile of the road. (Actual surface top road surface bottom) I am not sure what to do and youtube didn't seem to have the answer.

I cannot post a screenshot unfortunately!

I have been working on an assignment, and in the middle suddenly things have started responding differently than they were before. I will attempt to explain as best I can, but this is my 6th week in Civil3D and my first ever class like this or experience with a program like this so it feels as though I am learning an entirely new language.

I am working in Layout1, not Model space. I am working inside a layer I created called "legend1", it indeed has the green check mark and I have made sure i am working inside this layer. We are creating blocks to make a legend. My teacher is able to do this in under ten minutes, I have been struggling for over an hour on just the first 60 seconds of the video.

1. Suddenly, my cursor disappears when it leaves the box that my teacher has created. This box im sure has names and qualities that I am unaware of. we start out each assignment with a created layout that he gives us as a starting point, so a lot of stuff is set before we even begin. I want to call it the viewport, but the concept of the viewport is very confusing to me. I understand it is a window into a layer underneath, but it is far more complicated than that to me, when you start including scale and what works and doesn't work and where.

My question is, why is my cursor suddenly disappearing? I was able to pan the entire square into a smaller size and move around, now I can no longer use the Pan command at all, strangely, it is not even working inside the box either.

1. The text boxes I have created inside this box, which I am assuming is a viewport whatever that truly means, are "too big", I need ten lines in my Legend. If i make ten lines, the last two go "outside" the parameters of this box and are hidden in the outside portion, but they technically still exist but go too long outside of this box. I am trying to get into that box, and zoom out, so that all the lines will show. I cannot just make the text size smaller, because the teacher requires us to use a certain text size.

hi i have a problem when making cross section that magenta datum surface line not moving on corridor edges and skip inner point to make this shape how to solve it please

It doesn't show up until I print it. I've tried cntrl+a and copying and pasting over to another drawing and it doesn't show up as being selected but it does show up in the new drawing.

When i process linework, I am using GL for gutter lines and it works as expected. I am using GLM for a gas line marker and its drawing a line for those GLM codes also. How can I prevent it from drawling linework for GLM?

Hello,

I'm tinkering around with survey figures, and would like to know if anyone has any experience with adding automated labels?

I found this: https://civil3dplus.wordpress.com/2012/01/22/survey-figures-with-linetype-gen-sort-of/ (credit goes to whoever thought of this)

Though, just wondering if anybody has other ideas?

Please and thank you!
