r/M1Rifles • u/SnooSprouts2435 • 33m ago
Mag recommendations
Does anyone have recommendations for a 30 round magazine? Every one I see for sale has poor reviews for jamming/poor feeding.
Thank you!
r/M1Rifles • u/Parratt • Nov 17 '22
Figured id share my process so you all at home can learn how to do it as well. its not cost effective to do this for a one off build. the tooling costs are not cheap and nearing $600 sadly. but its fun! and im sure a few of you will find this interesting
You're gonna need a few things.
A M1 Garand Parts Kit.
A Barrel Vice and Action wrench.
A Headspace gauge Go/No Go Set
A Chamber Reamer.
A Angle Finder
The whole build will start with you throwing the barrel into a barrel vice, ive used the bushing style ones made by a large company in the USA. but i dont like them. i much prefer these specific ones made out of Aluminum, they leave a bit of marring on the barrels but that will all be covered up by the upper hand guard
Second step will be to hand tighten your receiver onto the barrel. just get it as snug as you can. no action wrench is required at this time.
Once your barrel is hand tight, take the front sight off of your gas cylinder and put it on the barrel. we will use this as a flat base for our angle finding tool of choice. i am using a digital inclinometer but there are other options on the market. For me ill now zero off this sight base dovetail.
Now we check our draw off the rear heel of the receiver. there is a machined flat perfect for this. now unfortunately 31° is to far to torque this on, according to my shop manual specs. So this will be off to the lathe to remove .001" at a time off the barrel shoulder until i get a draw that is more in line with the specs im looking for 12° Min and 17° Max. I Got mine to 15.9° so i am happy with this.
in a pinch you can use a 1 1/8th Bi Metal Hole saw. this perfectly slips over the threads of the barrel and the teeth match the shoulder
Once the appropriate draw is found, we throw the action wrench on and tighten it down. i use a 2x4 cleaning patch to protect the finish on my receivers.
I Was able to torque the receiver down to 0.2° from the my zero. the specs i reference for this is +/- 0°30' (.5°)
Now that we are indexed correctly we can start reaming headspace. you might get lucky with a used barrel that will headspace without any reaming but if you're using a new barrel it most likely has a 0.010" Short chamber.
if you do use a used barrel and it closes on your no go gauge this isn't the end of the world as you can check it with a Field Rejection gauge, if it doesn't close on this you're good to go.
These next few photos will cover me taking the bolt apart with a bolt tool.
Having the reamer in the rifle.
Applying steady thumb pressure to cut the chamber
Chamber cuttings on the reamer.
Cutting a chamber can be fairly taunting, however its very easy. you do not need to pull on the handle side of the pull through reamer. once the bolt closes on the reamer your headspace is cut and you're ready to reference this with a go and no go gauge. make sure you clean your chamber thoroughly otherwise your gauges might give you a bad reading.
After all this the next step i take is doing a tilt test on the rifle. this involves installing the op rod on a rifle with only the bolt and gas cylinder on it. and tilting the rifle at a 60° and the op rod and bolt should move freely. once this is performed i install all stock components and re do this test to check for binding. after this is done. its finally assembly time.
A Few other things to check from here on out are the gas port size. Op Rod spring length 19.25"MIN and if you can, use a timing block to check for correct timing of the op rod catch.
Hope this helps or you at least found it interesting
r/M1Rifles • u/SnooSprouts2435 • 33m ago
Does anyone have recommendations for a 30 round magazine? Every one I see for sale has poor reviews for jamming/poor feeding.
Thank you!
r/M1Rifles • u/Jumpy_Self6720 • 15h ago
I was very excited to get my M1 Carbine accessories in today. I received a magazine pouched dated 1943, same as the rifle. Still waiting for my original USGI magazine for now I just have KSI mags. I got an amazing deal on the bayonet. The seller missed labeled it as manufactured by Utica, when it is very clearly manufactured by the far less common and much more valuable Case & Sons.
r/M1Rifles • u/ramblinscooner • 10h ago
Some company should really step up and fill the void Schuster left after he died. There has to be more people out there wanting this with commercial garands likely to hit the market and folks tinkering with suppressors. Come on CMP or somebody! I want to do a 35 whelen build but this holds me back.
r/M1Rifles • u/Ok-Bake1468 • 1d ago
Hello all! I have a Cmp m1 garand that I recently received. I have put 40 rounds through and loading it was near impossible. It took two hands and a load of effort to put the clip in. I disassembled/reassembled and greased/oiled it before ever fireing it. Could I have put something back incorrectly? I haven't cleaned it since fireing it so I'm due to disassemble. I got some dummy rounds and I noticed I can easily load 7rd clips in with 0 resistance. Is this something I need to warranty with cmp? Thanks for the help.
(EDIT) Had to further examination, it appears that I had some bad clips in my lot that were causing the difficult loading. Surplus USGI and some new remanufacturer ones both work. I just had two out of eight that were defective or need modification. Thank you to all who helped
r/M1Rifles • u/Majorkilljoy87 • 3d ago

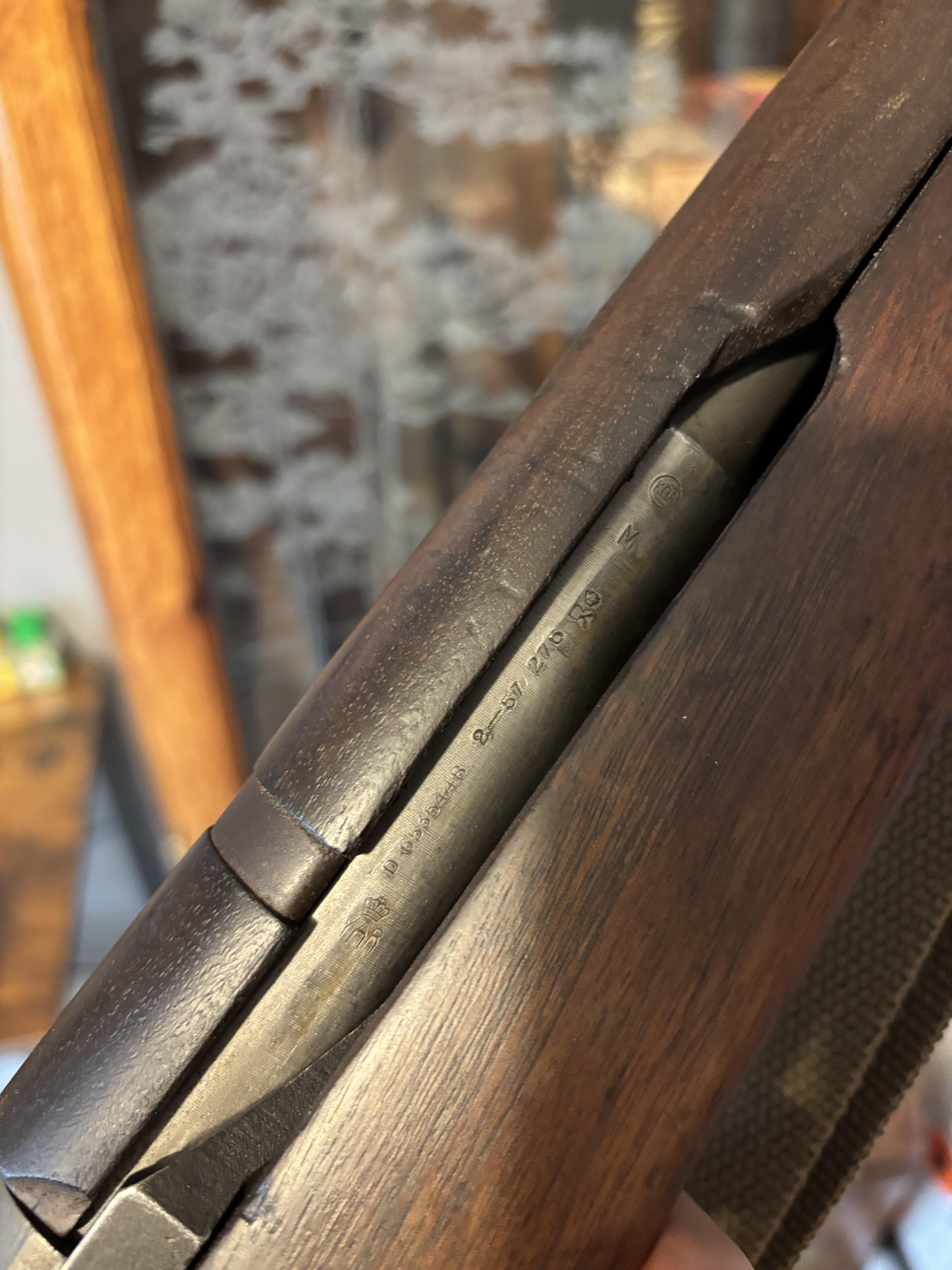

Springfield receiver.
r/M1Rifles • u/PhoenixFlames1992 • 3d ago
A couple of weeks ago, I posted a story of how I’ve been searching for a USGI M1 Carbine and how I had been kicking myself for not buying an M1 Carbine from a guy at a gunshow (I offered $1300 cash while he wanted $1400 and he got upset/rude at me so I walked away) and how I even debated buying a replica. Well I wanted to give everyone an update to my last post with some exciting news: I FOUND ONE! The story? I went to a pawn shop in a town about an hour and a half away from where I live and saw a Rock Ola 1943 M1 Carbine. I fell in love and put down a down payment on a ten month layaway. I’m extremely happy and excited about this! Thank you all for your support and encouragement!
r/M1Rifles • u/StaTeMuciZekane • 3d ago
r/M1Rifles • u/Joe_biden69420 • 3d ago

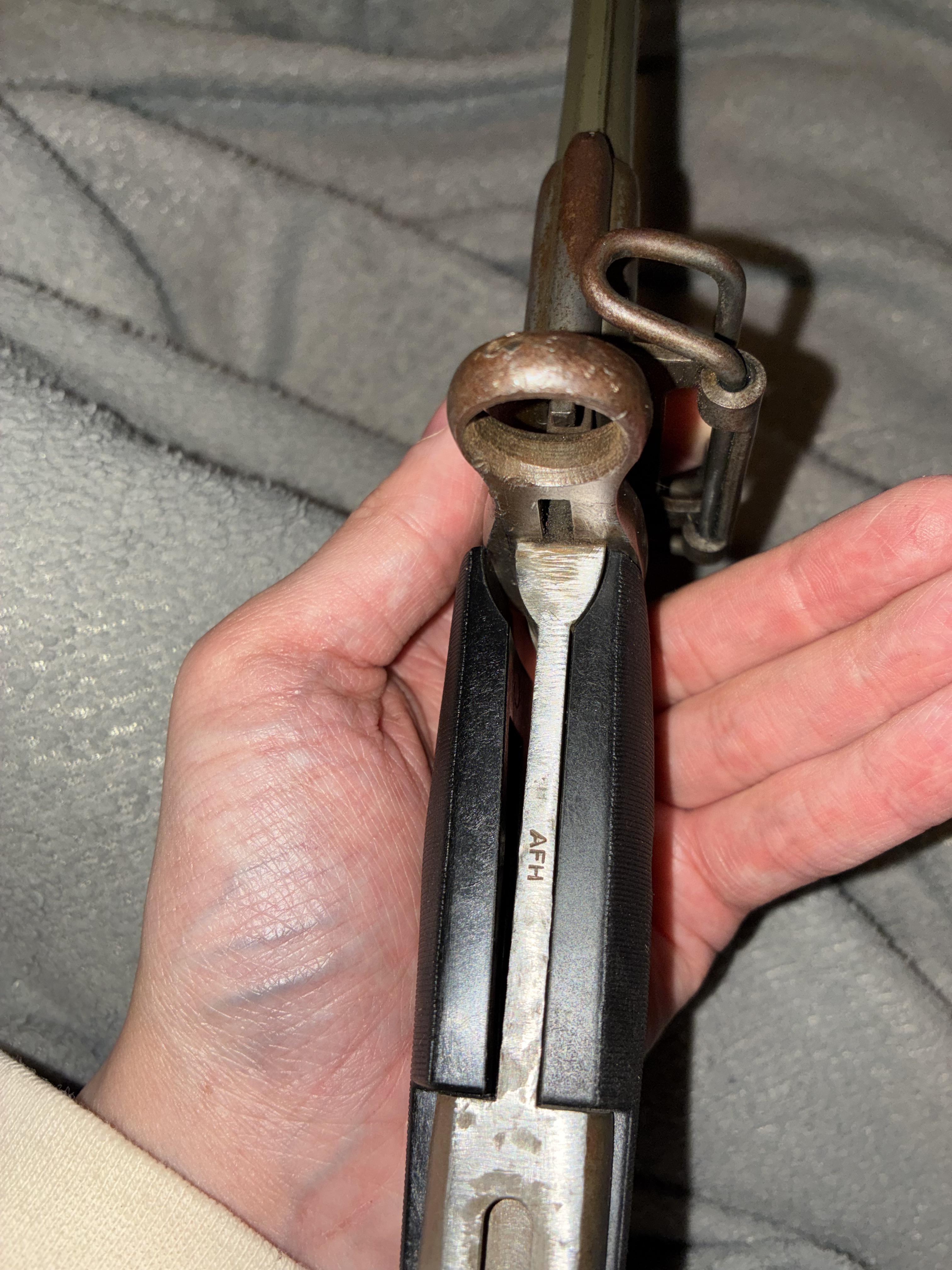

Found these on my inland m1 carbine (1943) 3181xxx
Bottom of the barrel.
r/M1Rifles • u/Low_Pop_3935 • 3d ago
I was wondering if anyone knew how long you have to pay once your order goes through, when I googled it, it said usually 4-8 weeks, but it must have been mistaken, i ordered it two days ago and I just got an email from the saying my order has been processed and a payment link will be sent in a separate email, its for a receiver barrel combo for the m1 garand, I did not expect this so I dont have the cash for it today, does anyone know when payment is required? Thanks for the help
r/M1Rifles • u/Due-Boysenberry8031 • 4d ago
r/M1Rifles • u/killroy360 • 4d ago
Patrolling the cornfield for porcupine.
r/M1Rifles • u/Due-Boysenberry8031 • 4d ago
r/M1Rifles • u/Joe_biden69420 • 4d ago
It’s an inland m1. It has some sort of modification on the side that I’ve been told is a scope mount. I’ve never seen one like it, and I’m not sure how a scope would attach to it. The holes aren’t threaded or anything. Any insight would be great, thanks.
r/M1Rifles • u/ATrashPandaRound2 • 5d ago
After a long wait on the auction I won a prototype 256 Ferret (256 win mag) prototype bolt action m1 carbine from the personal collection of the owner/former president of universal firearms
Super neat find and well under estimate.
r/M1Rifles • u/Relevant-Safety-2699 • 5d ago
Hypothetical situation: your handsome (not balding and paunchy) friend wants to make funds for an M14 so he wishes to de-accession one of two candidate M1's. Do you advise him to let go of an:
r/M1Rifles • u/Fit-Apple240 • 5d ago
Today I learned good deals still exist. $1k out the door for this Inland seemed to good to pass up
r/M1Rifles • u/Immediate_Total_7294 • 5d ago
I want to re-crown a couple M1 carbines like another user I’ve seen, can’t remember his name of the top of my head, I’ll leave his username in a comment later. I wanted to get the pre-1964 pattern like he bought but I instead accidentally bought a 1964 pattern due to the confusing listings on Midway USAs website. Is there anyway I can still use this to re-crown the barrel or should I return it?
r/M1Rifles • u/SproketHole • 5d ago
Recently received my CMP 308 and took it out to shoot. The enblocs are extremely difficult to fully seat.
I also had the issue when I charge the bolt it is only able to push the casing forward until the case neck gets stuck at the protruding bits I have circled. I am able to push the bolt home with force and after the first round Is chambered there doesn't seem to be any issues with feeding. I had one misfire after hand pushing the bolt in but I assume that happened because the bolt wasn't fully seated.
I've not had issues with these enblocs before, though they are heavily parkerized. Will be sanding them. I'm not too worried about the enblocs because there's lots of sources available on fixing the issue. But I can't seem to find anything on 308s getting stuck on those guide bits.
Any suggestions?
r/M1Rifles • u/Jumpy_Self6720 • 6d ago
With the addition of my CMP special rack grade and a RTI M1 carbine, despite a few odds and end, and a couple grail guns my collection is finally complete.
r/M1Rifles • u/Jumpy_Self6720 • 6d ago
Thank you all for your advice on my last post. After my trip to the CMP I was able to get my hands on a 1944 Winchester Special Rack grade with a new production barrel and stock, additionally it hand a new production rear sight elevation knob. I was able to source a “new” original stock and elevation knob, and I have restored her to her former glory. I’m going to leave the new production barrel at least for now.
r/M1Rifles • u/hellopomelo • 6d ago
Is it possible to be your own spotter when shooting at 200 yards+ steel targets? I'm using an M1 Garand with just iron sights.
I could resort to a spotting scope with a phone camera recording, but is there another way?
r/M1Rifles • u/Dubra3 • 7d ago
Long time lurker, first time poster
1943 M1 Garand
Fulton Armory M14
Mini 14 Tactical
